Light touch / Tactile switches

Biggest variety meets highest reliability.
Light touch / Tactile switches shadow

Light touch / Tactile switches

Panasonic's Tactile (Light Touch) Switches are multiplex and can be designed in almost any user interface application. Availability in a huge variety of shapes, sizes, terminals and push forces, Panasonic’s Light Touch Switches offer the opportunity to select the perfect Switch for the application. Each Switch is engineered for low contact resistance, small bounce noise, high contact reliability and a sharp tactile feel.

IMPORTANT NOTe:

The product links below temporarily refer to our global website based in Japan. While we are working to provide the complete product information on this European website, we hope that in the meantime you will benefit from the comprehensive information available on the global website. For any questions, please do not hesitate to contact us.

Our new light touch / Tactile switches

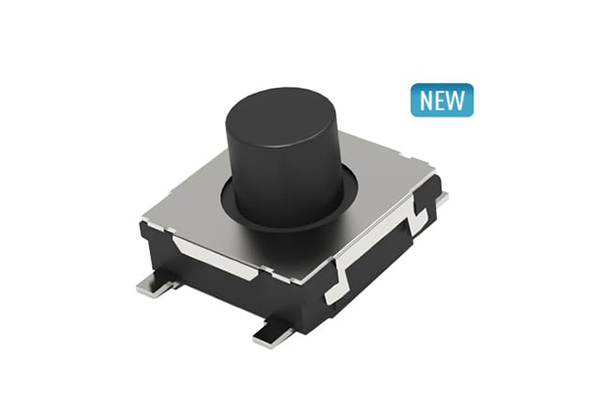

Light Touch Switch Tactile Switch EVPBT
Light touch switch (New)

6mm Square SMD (additional 4.3mm height version and straight terminals available)

EVPBT Series
Compact, robust – and with a wide range of variations ready for any smart product design
3.4mm x 1.7mm Side-operational Edge Mount (EVPAT)
Light touch switch (new)

3.4mm x 1.7mm Side-operational edge mount (new push force 1N/ 2,4N)

IP67
High operability Equipped with an actuator (push plate)

push force [N] (travel [mm]):
1,0(0,08); 1,6(0,11); 2,4(0,11)
6mm Square Long Travel 2 terminals SMD (EVPAS)
Light touch switch (new)

6mm Square Long Travel 2 terminals SMD (new push force 2,5N/ 3N/ 3,6N)

Autom. qualif.
Steady and low contact resist.
Excellent solderability (j-bent)

push force [N] (travel [1,3mm]): 1,6;2;2,2(1);2,5&3(1;1,3);3,5;3,6(1)
6mm Square Middle Travel 2 terminals SMD (EVPBD, EVP0B, EVPCD)
Light touch switch (new)

6mm Square Middle Travel 2 terminals SMD (new push force 4N/ 7N)

automotive qualified
Sharp feeling and silent by metal dome and rubber dome

push force [N] (travel [mm]):
3,5(0,75); 4(0,7); 7(0,8)
6mm Square Middle Travel 2 terminals SMD (EVPBD, EVP0B, EVPCD)
Light touch switch (new)

6mm Square Middle Travel SMD (new push force 3,5N)

push force [N] (travel [mm]):
2(0,25); 3,5(0,32)
1.000k cycles

Our product line-up

2.6mm x 1.6mm SMD (EVPBB)
Light touch switch

2.6mm x 1.6mm SMD

IP67
Small size; Low profile
High operability
Equipped with an actuator (push plate)

push force[N] (travel[mm]):
1(0,08); 1,6(0,11); 2,4(0,11)
2.8mm x 1.9mm SMD (EVPBL)
Light touch switch

2.8mm x 1.9mm SMD

IP67
Small size; Low profile
High operability equipped with an actuator (push plate)

push force [N] (travel[mm]):
1,6(0,15); 2,25(0,15)
2.8mm x 2.3mm Side-operational Edge Mount (EVPAV)
Light touch switch

2.8mm x 2.3mm Side-operational edge mount

Improved soldering strength in the operating direction

push force [N] (travel [mm]):
1,6(0,13)
3.0mm x 2.0mm SMD (EVPAW, EVP6A)
Light touch switch

3.0mm x 2.0mm SMD

IP67
Small size; Low profile
High operability equipped with an actuator(push plate)

push force [N] (travel[mm]):
1,6(0,13); 2,4(0,13); 3,3(0,15)
3.0mm x 2.6mm SMD (EVPAF/EVP0A)
Light touch switch

3.0mm x 2.6mm SMD

Small size; Low profile
High operability
Equipped with an actuator (push plate)

push force [N] (travel[mm]): 1,3(0,15);1,6(0,15);2,4(0,15);3,4(0,15)
3.0mm x 2.6mm Double-action SMD (EVPAX)
Light touch switch

3.0mm x 2.6mm double action SMD

Doubel action

push force [N] (travel [mm]):
1st action 0,7(0,07)
2nd action 2(0,16)
100k cycles
3.4mm x 1.7mm Side-operational Edge Mount (EVPAT)
Light touch switch

3.4mm x 1.7mm Side-operational edge mount

IP67
High operability Equipped with an actuator (push plate)

push force [N] (travel [mm]):
1,0(0,08); 1,6(0,11); 2,4(0,11)
3.4mm x 1.7mm Side-operational Edge Mount (EVPAT)
Light touch switch (new)

3.4mm x 1.7mm Side-operational edge mount (new push force 1N/ 2,4N)

IP67
High operability Equipped with an actuator (push plate)

push force [N] (travel [mm]):
1,0(0,08); 1,6(0,11); 2,4(0,11)
3.4mm x 2.9mm SMD (EVPAY)
Light touch switch

3.4mm x 2.9mm SMD

IP67
Small size; Low profile
High operability
Equipped with an actuator (push plate)

push force [N] (travel [0,15mm]):
1,6; 2,4
3.5mm x 2.9mm SMD (EVPAA/EVP2A/EVP3A)
Light touch switch

3.5mm x 2.9mm SMD

Automotive qualified
High operating force (max 7N)

push force [N] (travel [0,15mm]):
1; 1,6; 2,4; 3,5; 5; 7
3.5mm x 2.9mm Side-operational SMD (EVQ9P7)
Light touch switch

3.5mm x 2.9mm Side-operational SMD

Wide range of terminal type: L-shape, J-bent, Straight
High mount ability
Push plate strength enhanced type

push force [N] (travel [0,2mm]):
1,6; 2,2
3.5mm x 2.9mm Side-operational Half Dive SMD (EVPAN)
Light touch switch

3.5mm x 2.9mm Side-operational Half Dive SMD

Printed circuit board being as low as 0.7 mm
High mount ability

push force [N] (travel [0,2mm]):
1,6; 2,2
3.8mm x 1.9mm Side-operational SMD (EVPAK)
Light touch switch

3.8mm x 1.9mm Side-operational SMD

IP67

push force [N] (travel [mm]):
1,6(0,12)
500k cycles
4mm Square SMD (EVQP6/EVQ6P6/EVQ7P6/EVQ9P6)
Light touch switch

4mm Square SMD

Wide product variety
Long-life and Dust-proof structure

push force [N] (travel [mm]):
1(0,15); 1,6(0,2); 2,4(0,2)
4.5mm x 2.2mm Side-operational Edge Mount (EVPAE)
Light touch switch

4.5mm x 2.2mm Side-operational edge Mount

Automotive qualified

push force [N] (travel [0,15mm]):
1,6; 3; 3,5
(w. L-shape terminal 0,13mm travel)
200k cycles
4.7mm x 3.5mm SMD (EVQP2/EVQP9/EVQ3P2)
Light touch switch

4.7mm x 3.5mm SMD

Automotive qualified
High operating force
Long operational life

push force [N] (travel [0,25mm]):
1; 1,6; 2,4; 2,5(0,7); 3,5; 3,5(0,7); 4; 5
Small-sized Side-operational SMD (EVQPU)
Light touch switch

Small sized Side-operational SMD

Measure against electro static discharge (ESD)

push force [N] (travel [0,3mm]):
1,6; 2,2
4.9mm Square SMD (EVQPL/EVQ3PL/EVQ5PL/EVQPT)
Light touch switch

4.9mm Square SMD

Automotive qualified
With/without push plate available

push force [N] (travel [0,25mm]):
1; 1,6; 2,6; 3,5
4.9mm x 4.0mm SMD
Light touch switch

4.9mm x 4.0mm SMD

IP67
Small size; Low profile

push force [N] (travel [mm]):
2,5(0,23)
6mm Square Long Travel 2 terminals SMD (EVPAS)
Light touch switch

6mm Square Long Travel 2 terminals SMD

Autom. qual.
Steady and low contact resist.
Excellent solderability (j-bent)

push force [N] (travel [1,3mm]): 1,6;2;2,2(1);2,5&3(1;1,3);3,5;3,6(1)
6mm Square Long Travel SMD (EVQP0/EVQP1/EVQ9P)
Light touch switch

6mm Square Long Travel SMD

Autom. qual.
Steady and low contact resist.
Excellent solderability

push force [N] (travel [mm]):
1,6(1,3);2(1,3);2,2(1);2,5(1; 1,3);3(1,3);3,5(1,3)
6mm Square Middle Travel 2 terminals SMD (EVPBD, EVP0B)
Light touch switch

6mm Square Middle Travel 2 terminals SMD

Automotive qualified
Sharp feeling and silent by metal dome and rubber dome

push force [N] (travel [mm]):
3,5(0,75); 4(0,7); 7(0,8)
6mm Square Middle Travel SMD (EVPBF)
Light touch switch

6mm Square Middle Travel SMD

push force [N] (travel [mm]):
2(0,25); 3,5(0,32)
1.000k cycles
6mm Square Middle Travel 2 terminals SMD (EVPBD, EVP0B, EVPCD)
Light touch switch (new)

6mm Square Middle Travel 2 terminals SMD (new push force 4N/ 7N)

automotive qualified
Sharp feeling and silent by metal dome and rubber dome

push force [N] (travel [mm]):
3,5(0,75); 4(0,7); 7(0,8)
6mm Square Middle Travel 2 terminals SMD (EVPBD, EVP0B, EVPCD)
Light touch switch (new)

6mm Square Middle Travel SMD (new push force 3,5N)

push force [N] (travel [mm]):
2(0,25); 3,5(0,32)
1.000k cycles
6mm Square Long Travel 2 terminals SMD (EVPAS)
Light touch switch (new)

6mm Square Long Travel 2 terminals SMD (new push force 2,5N/ 3N/ 3,6N)

Autom. qualif.
Steady and low contact resist.
Excellent solderability (j-bent)

push force [N] (travel [1,3mm]): 1,6;2;2,2(1);2,5&3(1;1,3);3,5;3,6(1)
light touch switch 6mm square SMD Panasonic Industry
Light touch switch

6mm Square SMD

High force, overstroke travel and long life available

push force [N] (travel [mm]):
0,5(0,2);0,6(0,3);1(0,2);1,3(0,25);1,6(0,25);
2,6(0,25);5(0,25)
6.0mm x 3.5mm (EVQPE)
Light touch switch

6.0mm x 3.5mm

Wave soldering available

push force [N] (travel [0,25mm]):
1; 1,6; 2,4
50k cycles (1N; 1,6N)
30k cycles (2,4N)
6.0mm x 3.5mm SMD (EVQPE1/EVQPN/EVQ5P)
Light touch switch

6.0mm x 3.5mm SMD

push force [N] (travel [0,25mm]):
1; 1,6; 2,4
50k cycles (1N; 1,6N)
30k cycles (2,4N)
Over Travel (EVQP0)
Light touch switch

Over Travel

Excellent light-touch operational feel
Long life

push force [N] (travel [0,2mm]):
0,74; 1,3
5.000k cycles (0,74N)
1.000k cycles (1,3N)
6.2mm x 2.5mm Side-operational Edge Mount (EVQP4)
Light touch switch

6.2mm x 2.5mm Side-operational edge Mount

Autom. qual.
High force
Capable for high force in operating direction

push force [N] (travel [0,25mm]):
1; 1,6; 2,4; 2,5(0,7); 3,5(0,25; 0,7); 5(0,7)
8mm Square Long Travel SMD (EVQQ1)
Light touch switch

8mm Square Long Travel SMD

High operating force which prevents incorrect operation
Reliable contact (dust-proof design)

push force [N] (travel [1,0mm]):
4; 5
10 mm Square Center Space Long Travel SMD (EVPAD)
Light touch switch

10mm Square Center Space Long Travel SMD

Provides an excellent operational feel.
Crisp tactile feedb.
Long stroke (1 mm)
Supports auto reflow soldering

push force [N] (travel [1,0mm]): 4
