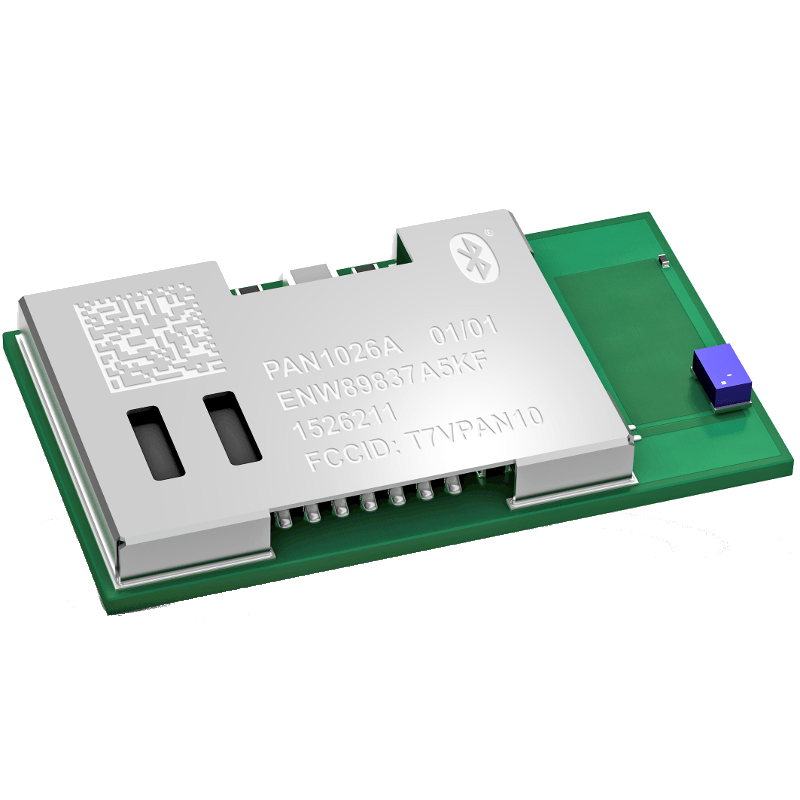

PAN1026A - Full Bluetooth® compatibility
ENW89837A5KF
Bluetooth® dual mode module (BR ®LE 4.2): Highly-integrated Bluetooth controller that delivers high-speed operation at low power consumption. You will find that the embedded SPP profile will send high data rates via Bluetooth Classic and the embedded GATT profile with high-level API commands, compatible with Toshiba reference Bluetooth LE profiles for the module.
| Product Change Notification | 1st September 2020 |
| Last Time Buy | October 2021 |
| Last Time Shipment | March 2022 |
Technical Specification
Item |
Performance characteristics |
| Order number | ENW89837A5KF |
| Production status | NRND |
| RF category | Bluetooth® 4.2 dual mode (BR, Bluetooth® LE) |
| Software/profile | HCI (SPP GATT), SDK by Toshiba |
| Used IC | TC35661-551 |
| Rx sensitivity | -88 dBm@1Mb/s |
| Tx power max | +4 dBm |
| Antenna option | Ceramic Antenna |
| Size (l x w x h) [mm] | 15.6 x 8.7 x 1.9 |
| Power supply [V] | 2.7 to 3.6 |
| Power consumption | ACL, DH1: 46 mA(3.3V) |
| Power consumption sleep | 2 mA |
| Interfaces | GPIO, UART |
| Evaluation board/stick | ENW89837AXKF |
| Evaluation kit | ENW89837AUKF |
| Certification | EU CE RED / FCC / IC / MIC / KC / SRRC |
| Operating temperature | -40 to +85 °C |
| Standard packaging QTY | 1500 pcs |
