PAN B511-1C - Coming soon

The PAN B511-1C is Panasonic's next gen Bluetooth 6.0 Module with a hybrid Castellated holes & LGA footprint design intended for cost-effective, high performance Bluetooth Low Energy applications.

In development

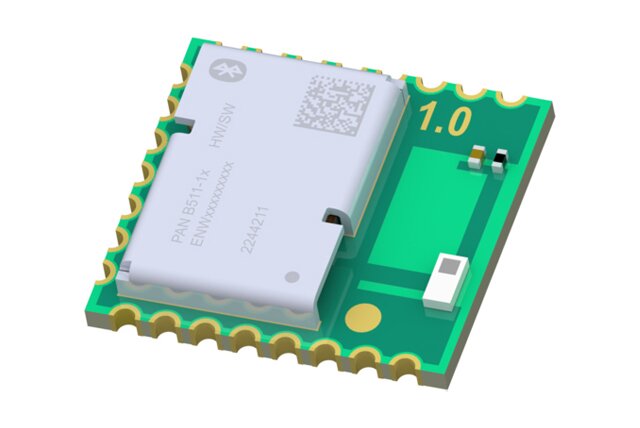

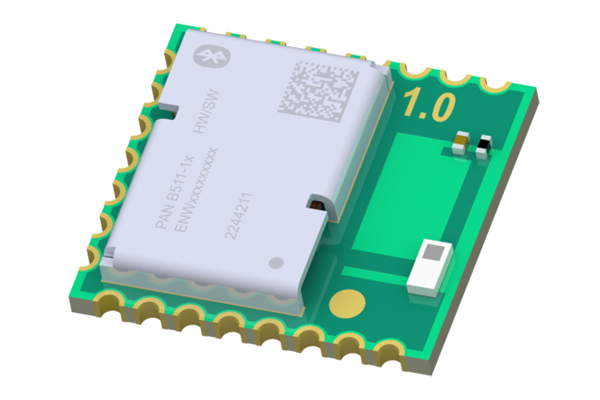

The PAN B511-1C is a Bluetooth 6.0 Low Energy (LE) module based on the Nordic nRF54L15 single chip controller.

It is available with an on-board chip antenna and with a RF-bottom pad. The all-in-one SoC including a superset of the most prominent nRF54 Series features combined with more performance and memory, while minimizing current consumption. In addition, the ultra-low current consumption of the PAN B511-1C makes the module an ideal choice for battery powered devices.The small size hybrid castellated holes & LGA footprint design offers the possibility for optical outgoing inspection, 2-layers designs and fast prototyping with hand soldering, while still offering more GPIOs on the bottom if needed.

The solution is intended to be certified for CE RED, FCC, ISED and MIC.

Technical Specification (PRELIMINARY)

item

Performance characteristics

RF category Bluetooth® 6.0 Low Energy (LE) & 802.15.4
Frequency [GHz] 2.4
Integrated IC nRF54L15
Software nRF Connect SDK
Antenna option

Integrated chip (PAN B511-1C)
Bottom pad (PAN B511-1B)

Ext. certified antenna types (Flex)PCB / Terminal*
Planned Certification CE RED, FCC, ISED, MIC*
Operating temperature [°C] -40 to +85*
GPIOs 32
Size [mm] 10.35 x 9.6 (PAN B511-1B)
10.35 x 9.6 (PAN B511-1C)
Production status In Development

*subject to change


Timeline



EVB  Available
Mass Production Q3 / 2025

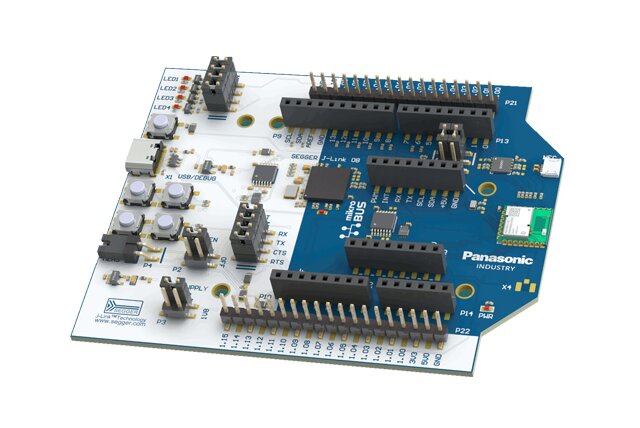

Evaluation Board

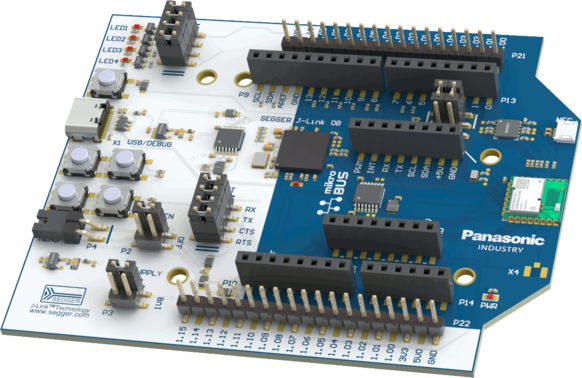

The evaluation board for PAN B511-1C features

  • Arduino interface configurable as shield or board
  • mikroBUS interface
  • All GPIOs accessible via pin headers
  • Power measurement interface
  • Segger J-Link on-board debugger
  • Virtual COM port over Segger J-Link on-board debugger
  • Peripherals can be deactivated for low power applications
  • 4x user buttons, 4x user LEDs
  • FPC connector for NFC antenna (antenna is included)
  • Compatible to nRF Connect SDK projects
P/N Package includes Stock Search
ENW89861AXKF 1x PAN B511-1C Evaluation Board  BUY


Start evaluation today

  • User Manual for the PAN B511-1C EVB
  • Software Development Guide for Toolchain Setup
  • Downloadable schematics of the Evaluation Boards (EVBs) as reference design
