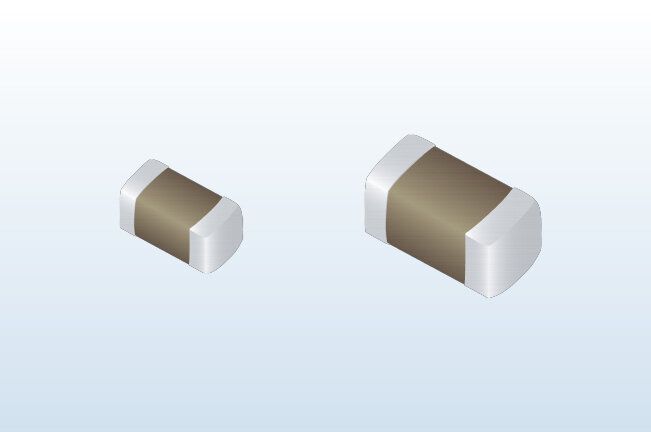

EZJP1V270EM
For ESD pulse [Automotive grade]
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance (max.) | 47 pF |
| Capacitance tolerance | - |
| Voltage range (max.) | 32.4 V |
| Voltage range (min.) | 21.6 V |
| Voltage tolerance | 27 V |
| Max. allowable voltage | 18 V |
| Weight (Typ.) | 5.2 mg |
| Packaging | PAPER TAPING (4mm) |
| Type | 0603 Size |
| Varistor voltage tolerance | - |
