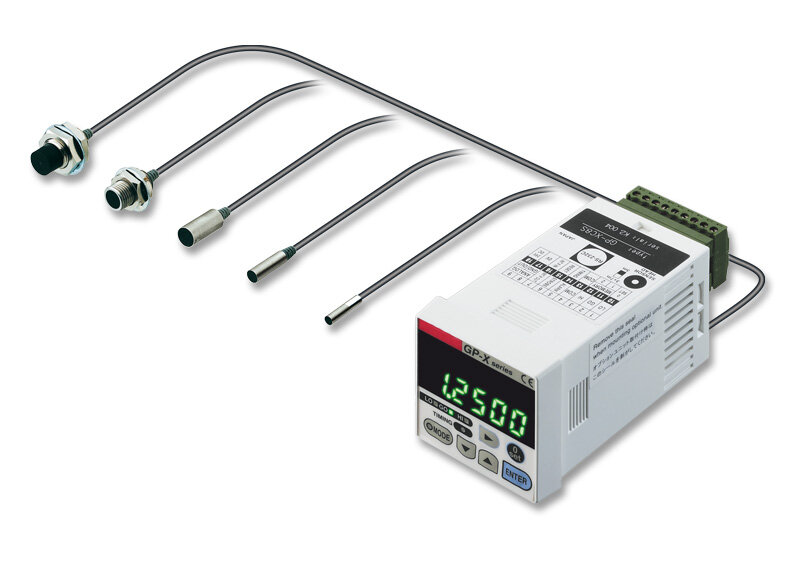

GPXC8SP
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sub category | Head, controller |
| Output | PNP |
| Analog output | Voltage |
| Connection method | - |
| Measuring range | 2 mm |
| Emitting element | - |
| Resolution | 0.4 µm |
| Power supply | 24 V DC |
| Protection | - |
| Temperature range | 0 to +50°C |
| Material | - |
| Applicable controller | - |
| Applicable sensor head | - |
| Head size | Ø8mm |
| Sampling rate | 25 µs |
| Serial interface | RS-232C |
| Sensor category | Measurement |
| Type | Inductive analog sensor (non-threaded head) |
