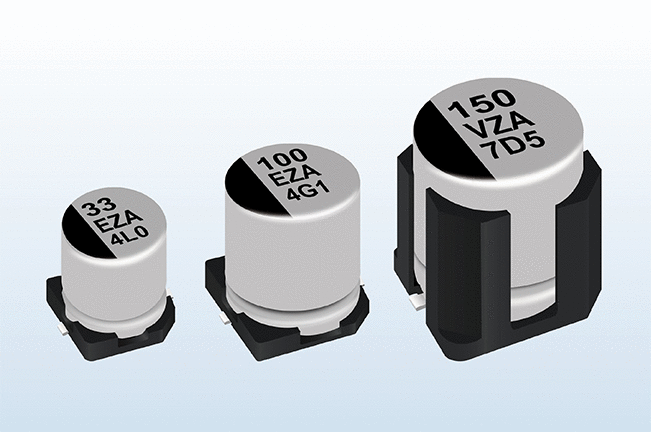

EEHZA1E330R

ZA (High temp. reflow)

Product specifications for this product

Item Product specifications
Capacitance 33 µF
Rated voltage 25 V
Endurance 10000 h
Category temperature range (max.) 105 °C
Body diameter 5 mm
Body length 5.8 mm
Body shape Surface mount type (vertical mount style)
Leakage current (max.) 8.2 µA
Forming & packaging feature Embossed carrier taping (reel packing)
Quantity (min. packaging unit) 1000 piece
Tangent of loss angle (max.) 0.14
Tolerance on capacitance (max.) 20 %
Tolerance on capacitance (min.) -20 %
Category temperature range (min.) -55 °C
Weight (Typ.) 0.2 g
Polarity type Polar
Appearance Sheathless (metal case)
E.S.R.-1 (frequency) 100000 Hz
E.S.R.-1 (max. value) 80 mΩ
Rated ripple current-2(unit) -
Rated ripple current-1 900 mA
Rated ripple current-1 (freq.) 100000 Hz
Rated ripple current-1 (unit) ｍArms
