AMG8854M01

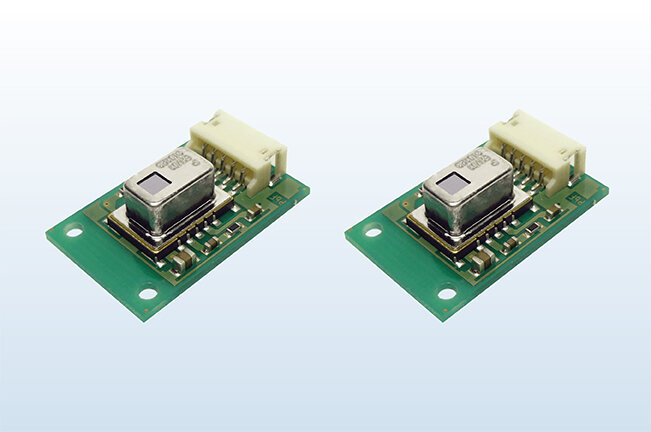

AMG8854M01 (Narrow pc board type)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Operating voltage (DC) | 5.0 V |
| Number of pixel | 64 (Vertical 8 x Horizontal 8 Matrix) |
| Amplification factor | Low gain |
| Mounting form | PC board type |
| Viewing angle | 35.6 ° |
