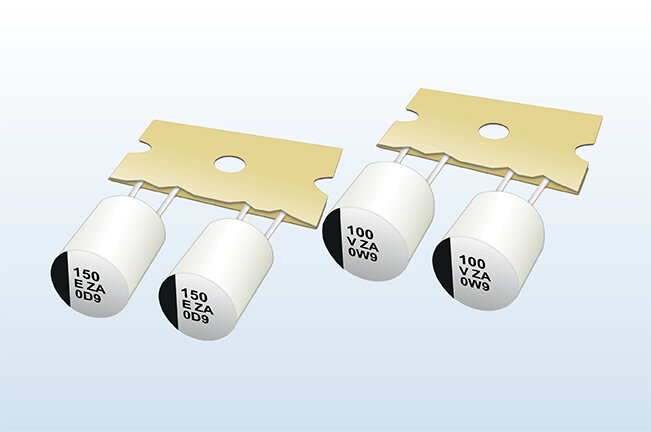

EEHAZA1H101B
ZA-A
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 100 µF |
| Rated voltage | 50 V |
| Endurance | 10000 h |
| Category temperature range (max.) | 105 °C |
| Body diameter | 10 mm |
| Body length | 9.5 mm |
| Body shape | Radial lead type |
| Leakage current (max.) | 50 µA |
| Forming & packaging feature | Lead taping (ammo packing), standard |
| Quantity (min. packaging unit) | 500 piece |
| Tangent of loss angle (max.) | 0.1 |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Category temperature range (min.) | -55 °C |
| Weight (Typ.) | 1.251 g |
| Lead (terminal) pitch | 5 mm |
| Polarity type | Polar |
| Appearance | Sheathless (metal case) |
| E.S.R.-1 (frequency) | 100000 Hz |
| E.S.R.-1 (max. value) | 28 mΩ |
| Rated ripple current-2(unit) | - |
| Rated ripple current-1 | 2000 mA |
| Rated ripple current-1 (freq.) | 100000 Hz |
| Rated ripple current-1 (unit) | ｍArms |
