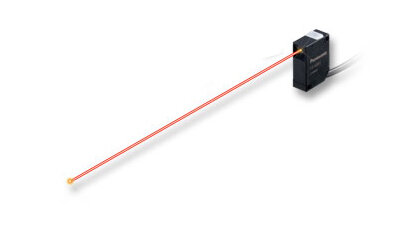

LS-H201
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sensor type | Laser ON/OFF (head) |
| Sub category | Diffuse reflective |
| Sensing range | 300 mm |
| Output | - |
| Output operation | - |
| Connection method | Cable |
| Response time | see amplifier |
| Emitting element | Laser, class 1 |
| Power supply | by amplifier |
| Protection | IP 40 |
| Temperature range | -10 to +55°C °C |
| Material | - |
| Sensing height | - |
| Sensor category | Photoelectric |
| Applications | Plastic |
