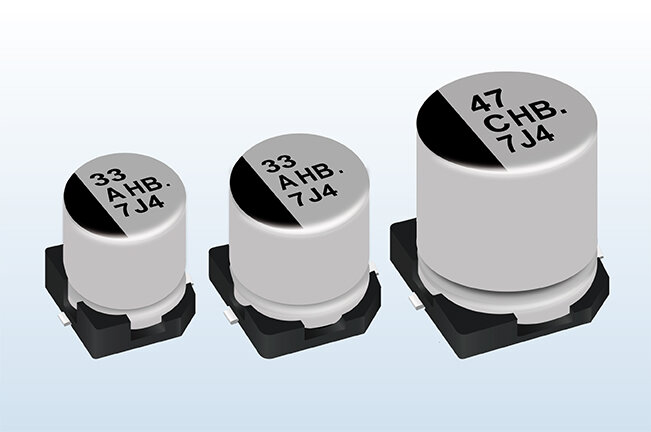

EEEHB1C220R
HB
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 22 µF |
| Rated voltage | 16 V |
| Endurance | 2000 h |
| Category temperature range (min.) | -40 °C |
| Category temperature range (max.) | 105 °C |
| Body diameter | 5 mm |
| Body length | 5.8 mm |
| Body shape | Surface mount type (vertical mount style) |
| Leakage current (max.) | 3.5 µA |
| Tangent of loss angle (max.) | 0.16 |
| Forming & packaging feature | Embossed carrier taping (reel packing) |
| Quantity (min. packaging unit) | 1000 piece |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Weight (Typ.) | 0.207 g |
| Polarity type | Polar |
| Appearance | Sheathless (metal case) |
| Rated ripple current-2(unit) | - |
| Rated ripple current-1 | 39 mA |
| Rated ripple current-1 (freq.) | 120 Hz |
| Rated ripple current-1 (unit) | ｍArms |
