ERBRD0R25X

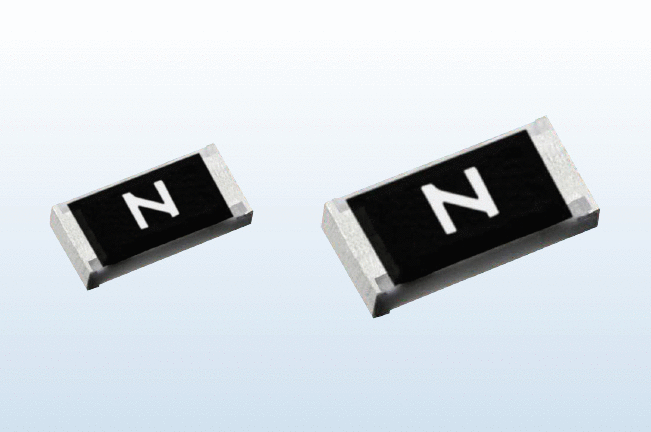

Micro Chip Fuse
Product specifications for this product
| Item | Product specifications |
|---|---|
| Interrupting Rating | 35 A |
| Rated Voltage (Open Circuit Voltage) [DC] | 32 V |
| Rated Current | 0.25 A |
| Size [L×W] (EIA) | 1.0×0.5 (EIA:0402) mm |
| Category temperature range | -40 to +125 °C |
| Weight (Typ.) | 0.7 mg |
| Fusing Current/Fusing Time [at 25℃] | Rated Current ×100 % / 4 hours min. |
| Internal R [at 25℃ max.] | 700 mΩ |
| Packing | Pressed Carrier Taping, 2 mm pitch |
Downloads
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| Datasheet | Data sheet | 545.2 KB | 24.05.2024 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（ERBRD0R25X) | Environmental, RoHS | 107 B | 08.01.2025 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（Micro Chip Fuse) | Environmental, RoHS | 104 B | 02.05.2025 | English |
| Packaging material list (for Italy） | Other | 281.6 KB | 09.11.2022 | English |
| Production location | Data sheet, Packaging information | 159.4 KB | 28.09.2023 | English |
| Report of Confirmation of EU REACH（ERBRD0R25X) | Environmental, REACh | 107 B | 08.01.2025 | English |
| Report of Confirmation of EU REACH（Micro Chip Fuse) | Environmental, REACh | 104 B | 08.01.2025 | English |
| Safety Precautions(Metal Film Fusing Resistors) | Certificate, Safety information | 290 KB | 24.05.2024 | English |
| Safety Precautions(Micro Chip Fuse) | Certificate, Safety information | 286.1 KB | 24.05.2024 | English |
