EEETP1H132V

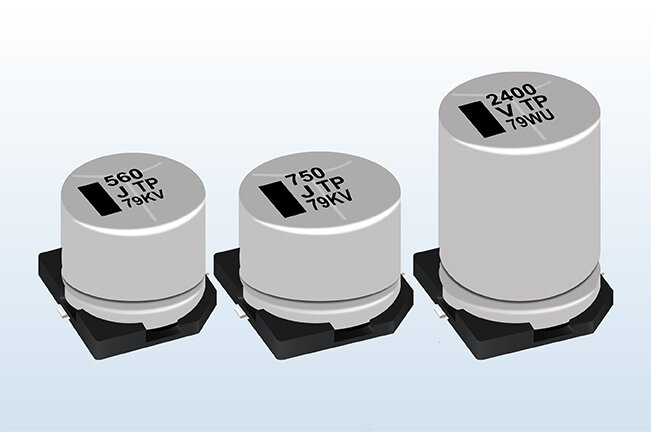

TP [Medium-size] (High temp. reflow)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 1300 µF |
| Rated voltage | 50 V |
| Endurance | 4000 h |
| Category temperature range (min.) | -55 °C |
| Category temperature range (max.) | 125 °C |
| Body diameter | 18 mm |
| Body length | 21.8 mm |
| Body shape | Surface mount type (vertical mount style) |
| E.S.R. (max. value) | 60 mΩ |
| E.S.R. (frequency) | 100000 Hz |
| Rated ripple current | 2900 mA |
| Rated ripple current (unit) | ｍArms |
| Leakage current (max.) | 650 µA |
| Tangent of loss angle (max.) | 0.14 |
| Forming & packaging feature | Embossed carrier taping (reel packing) |
| Quantity (min. packaging unit) | 75 piece |
| Rated ripple current (freq.) | 100000 Hz |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Weight (Typ.) | 8.87 g |
| Polarity type | Polar |
| Appearance | Sheathless (metal case) |
| Rated ripple current-2(unit) | - |
