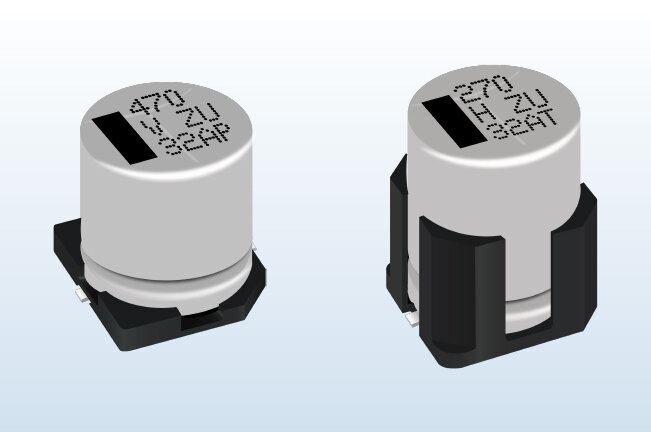

EEHZU1V471UV
ZUU (High temp. reflow)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 470 µF |
| Rated voltage | 35 V |
| Endurance | 4000 h |
| Category temperature range (max.) | 135 °C |
| Body diameter | 10 mm |
| Body length | 12.8 mm |
| Body shape | Surface mount type (vertical mount style) |
| Leakage current (max.) | 164.5 µA |
| Forming & packaging feature | Embossed carrier taping (reel packing) |
| Quantity (min. packaging unit) | 400 piece |
| Tangent of loss angle (max.) | 0.12 |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Category temperature range (min.) | -55 °C |
| Weight (Typ.) | 1.87 g |
| Polarity type | Polar |
| Appearance | Sheathless (metal case) |
| E.S.R.-1 (frequency) | 100000 Hz |
| E.S.R.-1 (max. value) | 11 mΩ |
| Rated ripple current-2 | 3500 mA |
| Rated ripple current-2(freq.) | 100000 Hz |
| Rated ripple current-2(unit) | ｍArms at 135 ℃ |
| Rated ripple current-1 | 5000 mA |
| Rated ripple current-1 (freq.) | 100000 Hz |
| Rated ripple current-1 (unit) | ｍArms at 125 ℃ |
