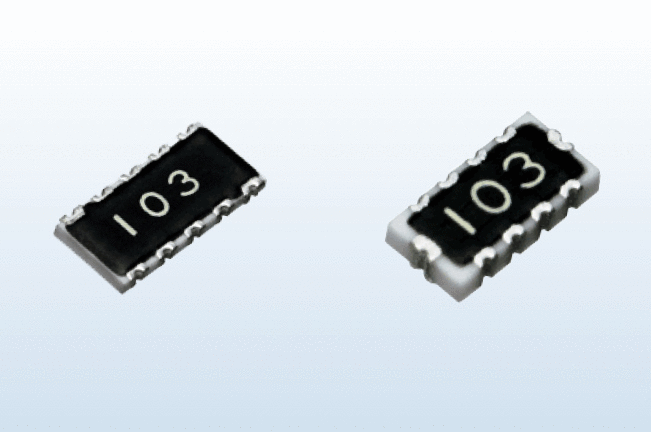

EXBA10E223J
Chip Resistor Networks
Product specifications for this product
| Item | Product specifications |
|---|---|
| Resistance values | 22000 Ω |
| Resistance tolerance | 5 % |
| Power rating | 0.063 W |
| Chip size (LxW) | 6.4 X 3.1 mm |
| Weight (Typ.) | 40 mg |
| Packaging | Embossed Taping |
| T.C.R (×10⁻⁶/K) | ±200 |
| Number of terminals | 10 piece |
| Number of elements | 8 piece |
| Terminal pitch | 1.27 mm |
| Type of circuit | Diagonal Common, Pin1, 6 |
