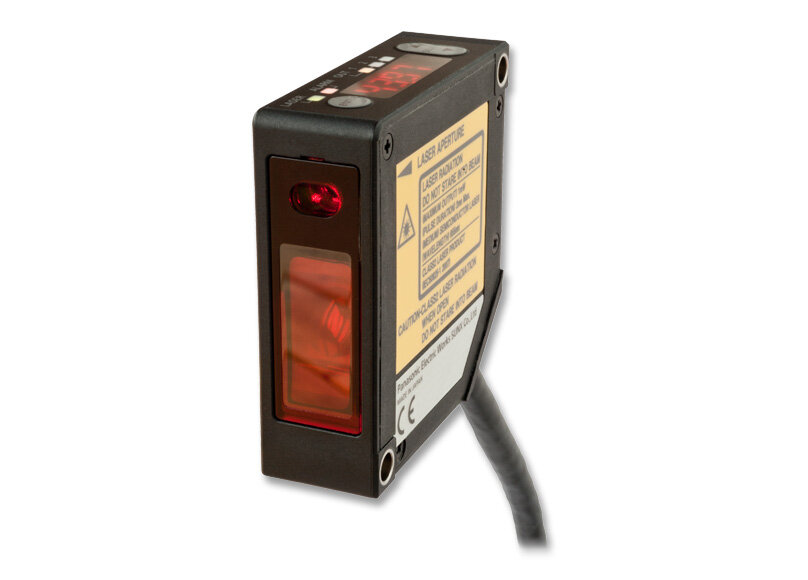

HL-G125-A-C5
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sub category | Head, Controller |
| Output | PNP/ NPN |
| Analog output | Voltage, current |
| Connection method | Cable |
| Measuring range | 100 - 400mm |
| Emitting element | Red laser, class 2 |
| Resolution | 20 µm |
| Power supply | 24 V DC |
| Protection | IP 67 |
| Temperature range | -10 to +45°C |
| Material | Plastic |
| Applicable controller | - |
| Applicable sensor head | - |
| Head size | - |
| Sampling rate | 200 µs |
| Serial interface | - |
| Sensor category | Measurement |
| Type | Optical measurement sensor |
