PAN1780 (nRF52840)

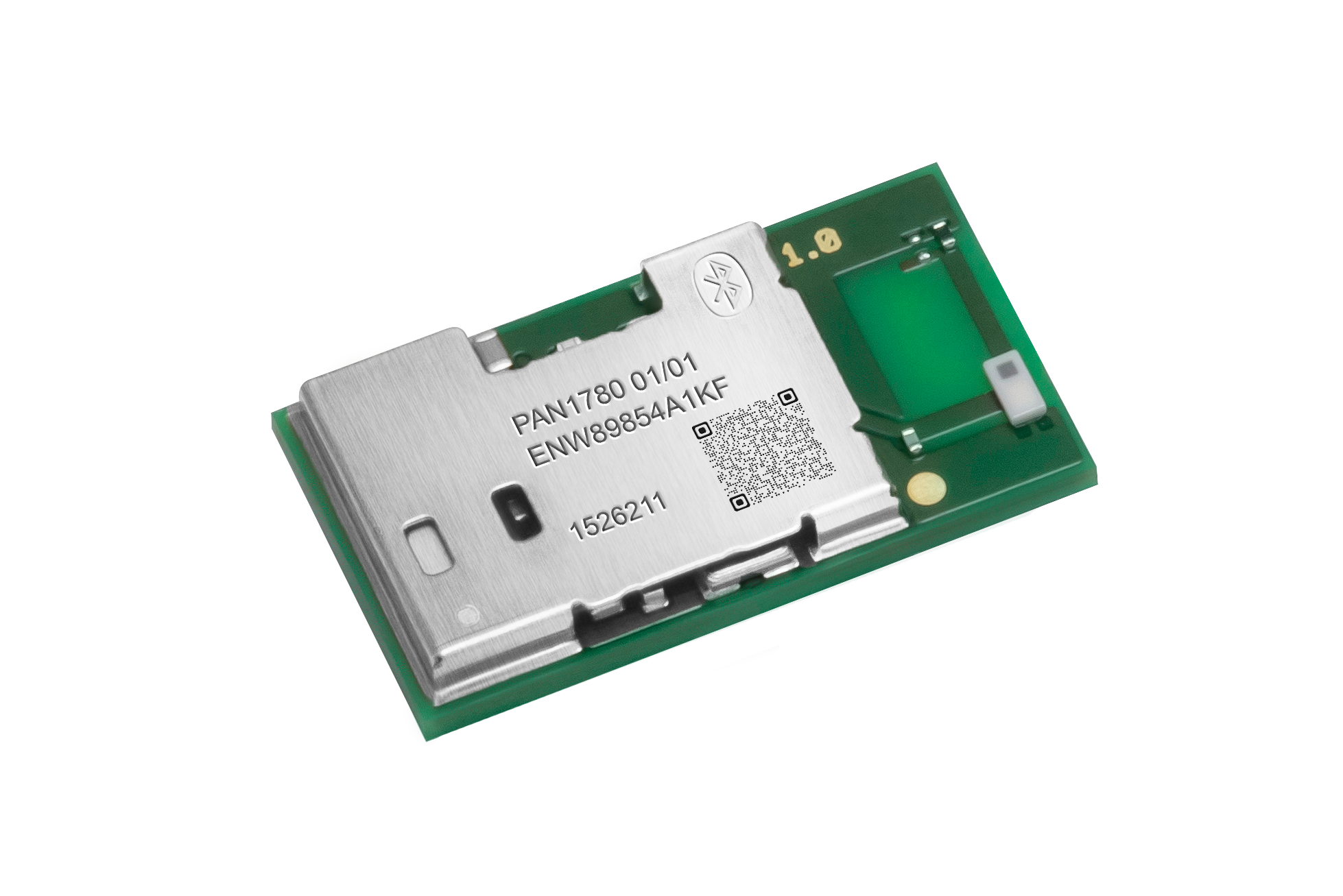

The PAN1780 is a Bluetooth® 5.3 Low Energy Module based on the Nordic nRF52840 single-chip controller. The Bluetooth® 5.3 feature enables a higher symbol rate of 2 Mbps using the high-speed LE 2M PHY. Furthermore, the new LE advertising extensions allow for much larger amounts of data to be broadcasted in connectionless scenarios. In addition to Bluetooth® 5.3, the qualified Bluetooth® mesh profile stack supports 802.15.4 and NFC-A. Also available is the PAN1780-AT, a variant with additional AT Command Set.
With its ARM® Cortex®-M4F a 1MB Flash and a 256kb RAM, the PAN1780 offers high design flexibility. It can easily be used in standalone mode, thereby eliminating the need for an external processor - saving complexity, space and cost.
![PAN1780_new](https://mediac.industry.panasonic.eu/p/styles/500x/public/2023-06/PAN1780_without_shadow.png?VersionId=A3GeiqfTWdwBw4LA0ZX59Zg7pHRyijP5&itok=OaWF8xia)
Technical Specification
Item |
Performance characteristics |
Order number | ENW89854A1KF (Standard) ENW8985A4KF (Improved APPROTECT) |
Production status | Mass production |
RF category | Bluetooth® 5.3 Low Energy, IEEE® 802.15.4, NFC |
Software/profile | SDK by Nordic Semiconductor |
Used IC | nRF52840 |
Rx sensitivity | -95 dBm @1Mb/s,-103 dBm @125kb/s |
Tx power max | +8 dBm |
Antenna option | Ceramic Antenna |
Size (l x w x h) [mm] | 15.6 x 8.7 x 2.0 |
Power supply [V] | 1.7 to 5.5 |
Power consumption Tx | 4.8 mA @0dBm (3.3V) |
Power consumption Rx | 4.8 mA (3.3V) |
Power consumption sleep | <1 µA |
Interfaces | GPIO, UART, QSPI, I2C, I2S, PDM, ADC, PWM, NFC-A, USB2.0 |
Microcontroller | ARM® Cortex®-M4F |
Memory | 1MB Flash and 256kB RAM |
Speciality | Integrated 32kHZ Crystal |
Certification | CE RED / FCC / ISED / MIC / KCC / ACMA / RSM |
Operating temperature | -40 to +85 °C |
Standard packaging QTY | 1500 pcs |
Evaluation Boards
![New Evaluation Board for PAN1780 with Arduino form factor Panasonic Industry](https://mediac.industry.panasonic.eu/p/styles/500x/public/2022-12/ENW89854AUKF---PAN1780-Evaluation-Board-min.png?VersionId=ud4iKCWFVZgg2pK5Mdtw1sUV5xDJ7TRy&itok=58jmBso5)

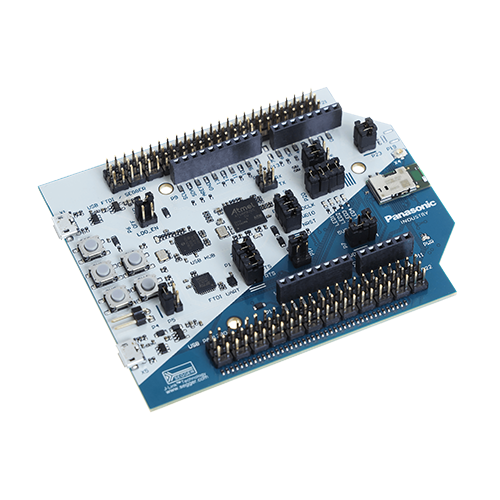

The evaluation board for PAN1780 features
- PAN1780 module
- Segger J-Link on-board Debugger
- FTDI UART-USB converter
- 4 User Buttons
- 4 User LEDs
- Native USB interface
- NFC interface
- Access to several GPIOs
- Arduino form factor (ENW89854AUKF)
P/N | Package includes | Stock Search |
---|---|---|
ENW89854AWKF (NRND) | 1x PAN1780 Evaluation Board | BUY |
ENW89854AXKF (NRND) | 2x PAN1780 Evaluation Board | BUY |
ENW89854AUKF | 1x PAN1780 Evaluation Board Arduino form factor | BUY |
Get Started!
For hardware design requirements please have a look at the Module Integration Guide. It is intended to support the easy integration of the module into a product and to ensure the compliance with regulatory requirements.
PAN1780 EVB documentation
![Man_notebook](https://mediac.industry.panasonic.eu/p/styles/500x/public/2023-02/Man_notebook.jpg?VersionId=XQSViUWci6zBEtSNIKtu66pW.H3WWyiC&itok=GLVH45lQ)
Get all the technical information on the PAN1780 Evaluation Board here!
Contents of the Wireless Connectivity Development Hub:
- User Manual for the PAN1780 EVB
- Downloadable schematics of the Evaluation Boards (EVBs) as reference design
Click here: PAN1780 - Wireless Connectivity Development Hub (panasonic.de)
Cooperation with Finnish mesh connectivity provider Wirepas
![Wireless connectivity Wirepas landing page Teaser Panasonic Industry](https://mediac.industry.panasonic.eu/p/styles/500x/public/2021-05/wireless-connectivity_Wirepas_landing_page_teaser_01.png?VersionId=mt5z4nvbIibbsXwxMTFCemXWvLxSSAPg&itok=hmJD9Pz8)

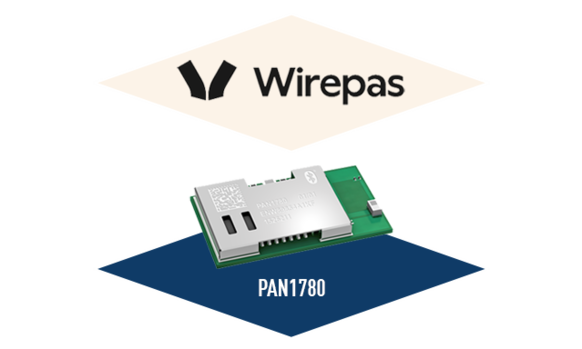

Find out more about the Wirepas Massive stack for reliable and scalable meshed solutions and how our PAN1780s can be used as Wirepas Nodes.
- based on 2.4 GHz
- over 100.000 devices per network
- AES-128 encryption
- interference optimization
