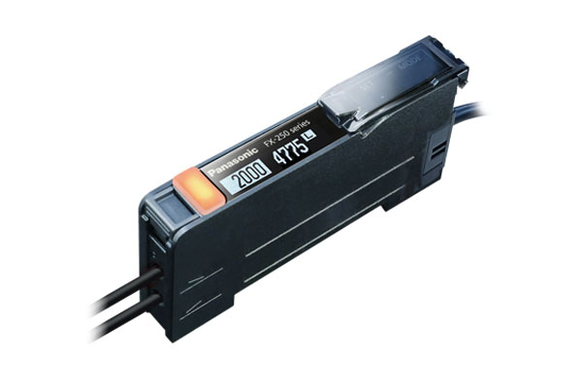

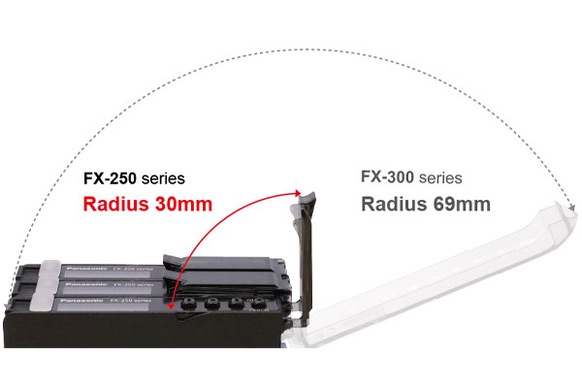

Digital fiber sensor FX-250 with OLED display

Supply voltage

12 to 24V DC (±10%, ripple P-P max. 10%)

Power consumption

Normal operation: max. 960mW (current consumption max. 40mA at 24V supply voltage)

Output

NPN

NPN open-collector transistor

• Maximum sink current: 100mA
• Applied voltage: max. 30V DC between output and 0V
• Residual voltage: max. 2V (at maximum sink current)

PNP

PNP open-collector transistor

• Maximum source current: 100mA
• Applied voltage: max. 30V DC between output and +V
• Residual voltage: max. 2V (at maximum source current)

Output operation

Switchable either Light-ON or Dark-ON by L/D mode

Short-circuit protection

Incorporated

Response time

H-SPD: max. 35μs, FAST: max. 60μs, STD: max. 250μs, LONG: max. 2ms, H-PWR: max. 24ms

Output indicator

Orange LED turns on when output is ON

Sensitivity setting

2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment

Threshold value adjustment function

Incorporated

Incident light sensitivity adjustment function

Incorporated, max. 100 steps

Incident light intensity display range

H-SPD / FAST / STD: 0 to 4000, LONG / H-PWR: 0 to 9999

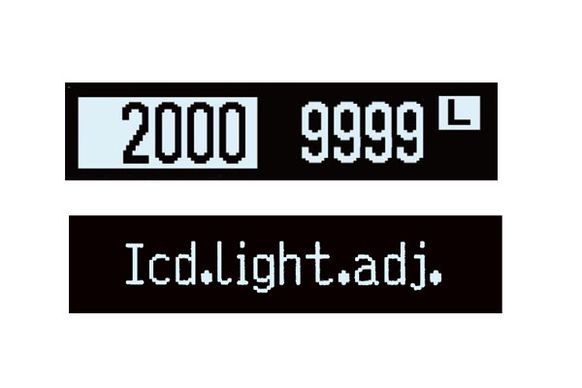

Digital display

White organic EL display

Various settings

Shift amount setting (percentage, fixed value), display style setting, display inversion setting, ECO setting, zero-set function

Timer function

Incorporated with variable OFF-delay / ON-delay / One-shot / switchable either effective or ineffective

Setting range: 1 to 9999ms approx. in increments of 1ms

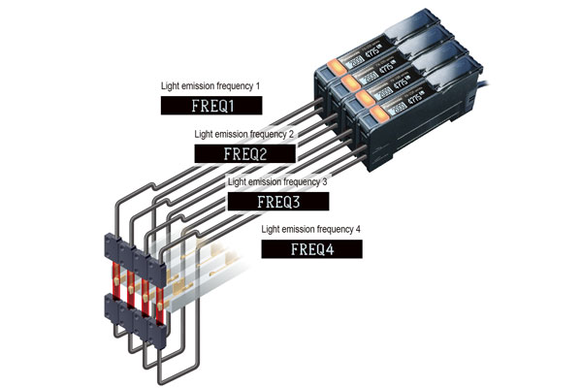

Interference prevention function

Incorporated (up to 4 units)

Degree of protection

IP40 (IEC)

Ambient temperature

-10 to +55°C

For 4 to 7 units mounted in cascade: -10 to +50°C or if 8 to 16 units are mounted in cascade: -10 to +45°C) (No dew condensation or icing allowed), storage: -20 to +70°C

Ambient humidity

35 to 85% RH, storage: 35 to 85% RH

Ambient illuminance

Incandescent light: max. 10,000 ℓx at the light-receiving face

Voltage withstandability

1000V AC for one minute between all supply terminals connected together and enclosure

Insulation resistance

Min. 20MΩ, with 250 V DC megger between all supply terminals connected together and enclosure

Vibration resistance

10 to 150 Hz frequency, 0.75 mm in double amplitude (100 m/s² max.) in X, Y and Z directions for two hours each (without power supply)

Shock resistance

98m/s² acceleration (10G approx.) in X, Y and Z directions five times each (without power supply)

Emitting element (modulated)

Red LED (Peak emission wavelength: 660nm)

Material

Housing, protective cover, and keys: polycarbonate

Cable

0.2mm² 3-core cab tire cable, 2m long

Cable extension

Extension up to total 100m is possible with a cable of min. 0.3mm² and a supply voltage of at least 12V DC

Weight

Net weight: 55g approx.
Gross weight: 80g approx.
