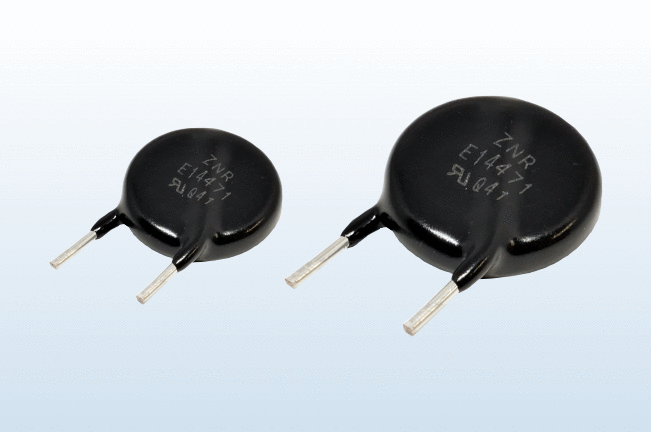

ERZV05D270
Varistor Type: D Series: V
Product specifications for this product
| Item | Product specifications |
|---|---|
| Voltage | 27 V |
| Capacitance (max.) | 1450 pF |
| Clamping voltage (max.) | 60 V |
| Voltage range (max.) | 30 V |
| Voltage range (min.) | 24 V |
| Height | 10 mm |
| Weight (Typ.) | 0.4 g |
| Packaging | Bulk |
| Width | 7 mm |
| Lead diameter | 0.6 mm |
| Series | Series V |
| Thickness [SMD: Length] | 4.5 mm |
| Element size | 5 Series |
| Lead type | STRAIGHT LEAD TYPE |
| Max. allowable voltage ACrms | 17 V |
| Max. allowable voltage DC | 22 V |
| Max. energy (2ms) | 0.7 J |
| Max. peak current (8/20 µs) | 250 A |
| Rated power | 0.01 W |
| Lead Spacing L | 1.5 mm |
| Lead Spacing W | 5 mm |
Downloads
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| AEC-Q200 Passive Components Selection Guide.pdf | Flyer | 2.6 MB | 03.05.2022 | English |
| CSA mark will be changed | Flyer, General information | 70 KB | 08.04.2020 | English |
| Datasheet | Data sheet | 5.4 MB | 16.05.2024 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（ERZV05D270) | Environmental, RoHS | 107 B | 07.06.2024 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（Varistor Type: D Series: V) | Environmental, RoHS | 104 B | 02.05.2025 | English |
| Load reduction curve at high temperature | Data sheet, Technical information | 69 KB | 25.01.2021 | English |
| Marking Contents | Data sheet, Technical information | 348.1 KB | 25.01.2021 | English |
| Minimum Quantity/Packing Unit | Data sheet, Packaging information | 327 KB | 25.01.2021 | English |
| Minimum quantity | Other | 182.3 KB | 22.08.2024 | English |
| Packaging material list (for Italy） | Other | 323.8 KB | 08.11.2022 | English |
| Performance Characteristics | Data sheet, Technical information | 378.7 KB | 25.01.2021 | English |
| Production location | Data sheet, Packaging information | 159.4 KB | 28.09.2023 | English |
| Products Catalog (Surge Absorbers) | Catalog | 18 MB | 25.11.2024 | English |
| Products List | Catalog | 257.7 KB | 13.12.2022 | English |
| Report of Confirmation of EU REACH（ERZV05D270) | Environmental, REACh | 107 B | 07.06.2024 | English |
| Report of Confirmation of EU REACH（Varistor Type: D Series: V) | Environmental, REACh | 104 B | 14.06.2024 | English |
| Safety Precautions | Certificate, Safety information | 850.6 KB | 25.11.2024 | English |
| Structural drawing | CAD | 35.1 KB | 25.01.2021 | English |
| ZNR Technical guide | Other | 3.5 MB | 01.11.2022 | English |
| ZNR Transient/Surge Absorbers | Data sheet, Technical information | 160.8 KB | 13.12.2022 | English |
