ERJPB3B1181V

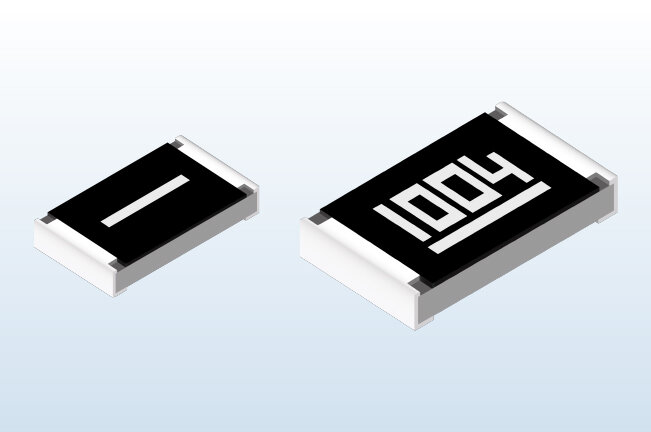

High Precision Thick Film Chip Resistors
Product specifications for this product
| Item | Product specifications |
|---|---|
| Resistance Values | 1180 Ω |
| Resistance Tolerance | 0.1 % |
| Power Rating | 0.2 W |
| Chip Size (LxW(EIA)) | 1.6 x 0.8 (EIA:0603) mm |
| Weight (Typ.) | 2 mg |
| Packaging | Punched (Paper) Taping |
| T.C.R (×10⁻⁶/K) | ±50 |
Downloads
| Name | File type | Size | Date | Language |
|---|---|---|---|---|
| AEC-Q200 Passive Components Selection Guide.pdf | Flyer | 2.6 MB | 03.05.2022 | English |
| Appendix | Data sheet, Technical information | 180.3 KB | 05.12.2023 | English |
| Battery Management System | Flyer | 663.4 KB | 07.12.2023 | English |
| Brochure of high performance chip resistors | Catalog, Brochure | 12.2 MB | 23.07.2024 | English |
| Cross reference | Data sheet, Technical information | 167.3 KB | 09.04.2020 | English |
| Datasheet | Data sheet | 409.2 KB | 27.05.2024 | English |
| High Power SMD Resistors - Ideal for your downsizing | Flyer | 384.2 KB | 19.02.2025 | English |
| High performance chip resistors | Catalog, Brochure | 13.1 MB | 31.10.2021 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（ERJPB3B1181V) | Environmental, RoHS | 109 B | 24.07.2024 | English |
| Letter for Certificate of Compliance to EU RoHS Directive（High Precision Thick Film Chip Resistors ) | Environmental, RoHS | 104 B | 02.05.2025 | English |
| Packaging Specifications | Data sheet, Packaging information | 407.9 KB | 20.02.2024 | English |
| Packaging material list (for Italy） | Other | 302.3 KB | 08.11.2022 | English |
| Production location | Data sheet, Packaging information | 193.4 KB | 08.05.2025 | English |
| Products Catalog (Fixed Resistors) | Catalog | 12.2 MB | 14.01.2025 | English |
| Quick Guide(Power Type Resistors) | Catalog, Brochure | 49.7 KB | 08.04.2020 | English |
| Recommended land pattern dimensions | Data sheet, Technical information | 228.4 KB | 23.04.2024 | English |
| Recommended soldering condition | Data sheet, Technical information | 186.8 KB | 05.12.2023 | English |
| Report of Confirmation of EU REACH（ERJPB3B1181V) | Environmental, REACh | 109 B | 24.07.2024 | English |
| Report of Confirmation of EU REACH（High Precision Thick Film Chip Resistors ) | Environmental, REACh | 104 B | 16.08.2024 | English |
| Safety Precautions | Certificate, Safety information | 288.6 KB | 27.05.2024 | English |
| Technical Guide | Data sheet, Technical information | 1.2 MB | 08.04.2020 | English |
