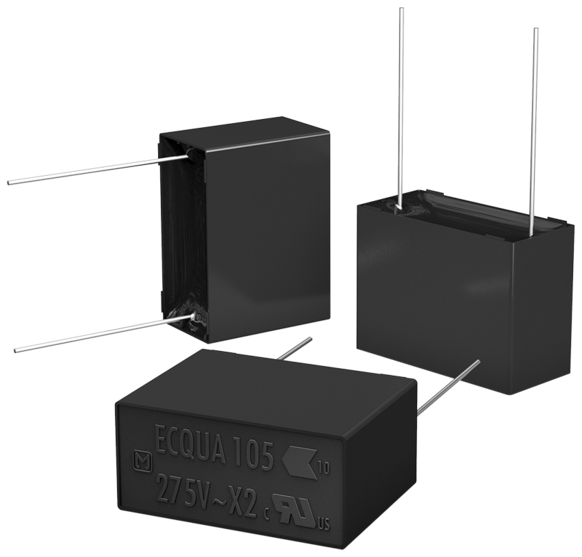

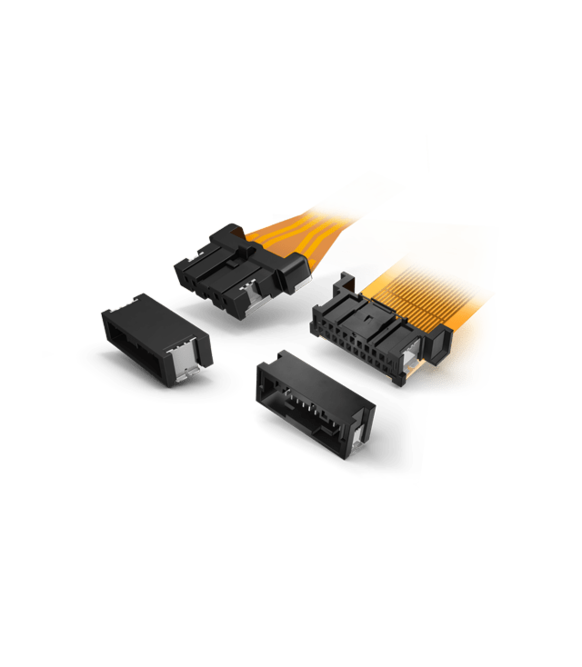

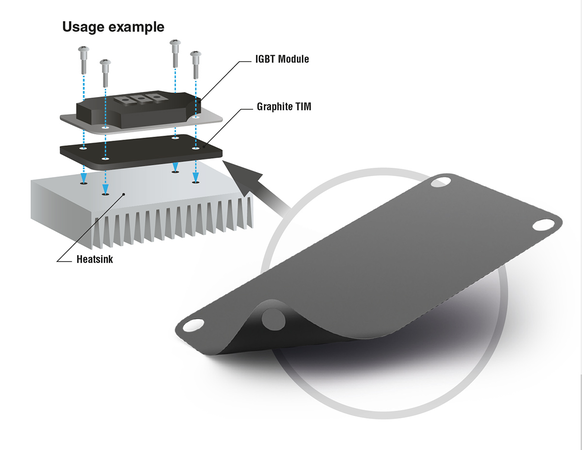

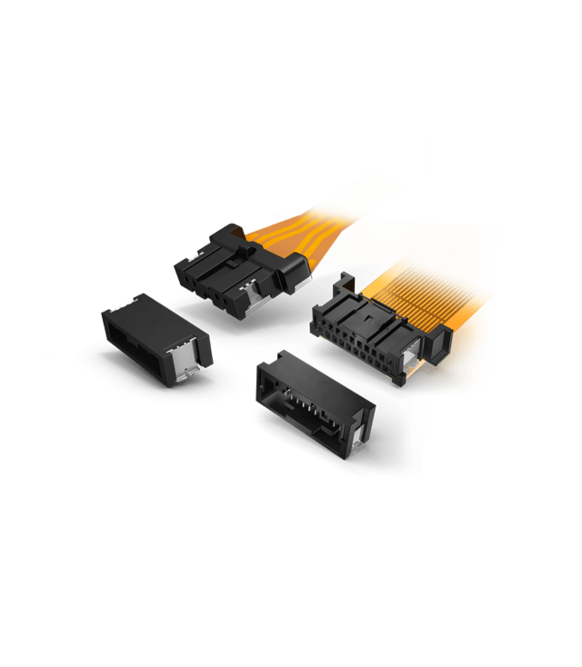

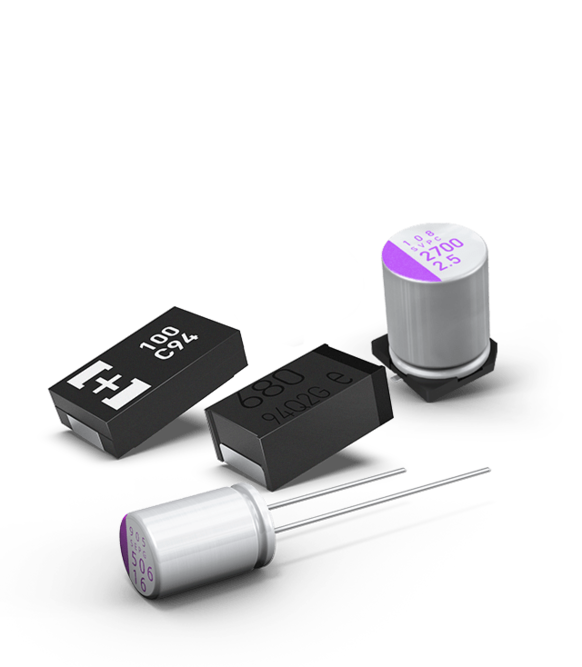

Components for EV Charging Solutions

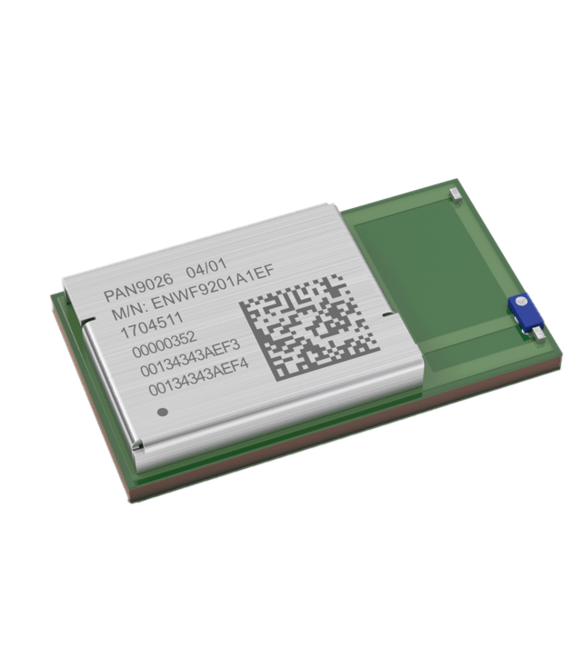

Combination of Wi-Fi and Bluetooth®

The PAN902x Series perfectly connects the charging station with mobile devices or a cloud.

• Dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi/BT combo module
• Bluetooth® 4.2 (includes LE) as well as future Bluetooth® 5.0 features
• Supports 802.11i security standards through AES, CCMP, and more security mechanisms
• Dual simultaneous and independent WLAN and Bluetooth® operation
• IEEE 802.11n 20 MHz and 40 MHz channel bandwidth
• Wide temperature range of -30 to +85°C

For commissioning and displaying usage data by a smartphone or a similar handset, wireless modules serve as access points or clients. With its combination of Wi-Fi and Bluetooth® function, the PAN902x Series provides the highest flexibility for connectivity, depending on which data rates or ranges are required for an EV charger application. The PAN9026, a dual band 2.4/5 GHz 802.11 a/b/g/n Wi-Fi radio module with integrated Bluetooth® BDR/EDR/LE is specifically designed for highly integrated and cost effective applications, whereas the PAN9028 is targeted for more sophisticated use cases where higher data rates (802.11ac) are needed. The PAN902x can act as a client to connect the charging station to a network, in order to upload data to a cloud.

Panasonic Industry provides wireless modules that combine Wi-Fi and Bluetooth technology to offer a range of connectivity options for a variety of devices and applications.

The Wi-Fi capability of the modules allows for high-speed data transfer and internet connectivity, while the Bluetooth technology provides a low-power, short-range wireless communication option. This combination of technologies allows for flexible and efficient communication between devices, enabling a wide range of applications.

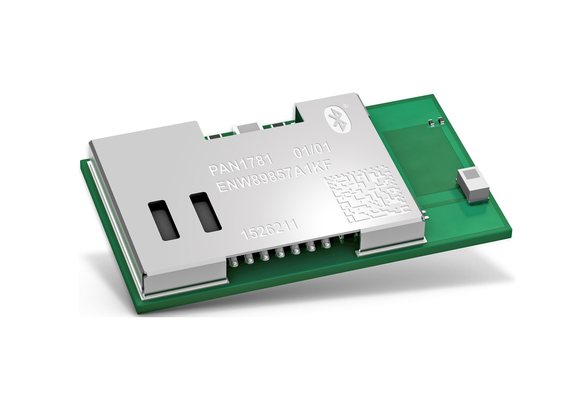

Bluetooth® LE Solution

Just integrate PAN178x series in a meshed network and easily access charging station data.

• IP Core: Cortex M4(F) with 64 MHz
• Temperature Range: -40 to 85
• Size: 15.6x8.7x2mm
• Up to 48 General Purpose I/Os (depending on module version)

PAN178x are Bluetooth® Low Energy modules based on Nordic Semiconductor chipsets, particularly suitable for low-power transmission of smaller data rates. The wireless modules differ only in memory size and number of GPIOs to meet various application requirements. In commercial DC charging stations, the PAN178x modules can be integrated into a meshed network, which not only allows customers to connect easily, but also gives the operator an overview of the individual charging stations in terms of occupation. The SoC offers a qualified Bluetooth mesh stack with all mandatory and optional features in addition to a wide range of applications.

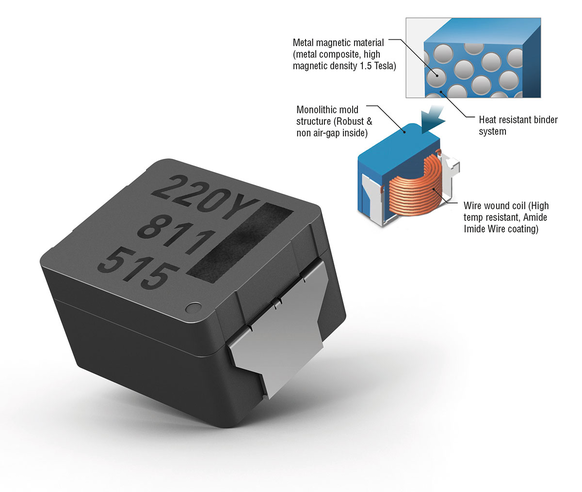

Metal Composite Magnetic Core Technology for Outstanding Reliability

Space saving high-tech with zero failures

• Variety of inductance range from 0.33μH to 100μH
• Package size from 5x5mm to 12x12mm
• Up to 85A saturation, 53A rated / 0.33μH
• Operation temp. -55°C to +155°C, up to +180°C in short time
• 50% space saving vs Ferrite inductor
• Vibration resistance from 10G to 30G
• AEC-Q200 compliant

Best-in-class reliability for the automotive industry market the metal composite power inductors ETQP-series. The monolithic core and innovative terminal structure guarantee high resistance against thermal stress and vibrations. Unique is the magnetic core material which provides none hard saturation characteristics against D.C. bias current for high peak current capability, and also can reduce D.C. Resistance and A.C. Resistance for low power loss. This in turn supports higher power efficiency in DC-DC converters and input filter circuits, as well as a possible space reduction of up to 50% against ferrite inductors.

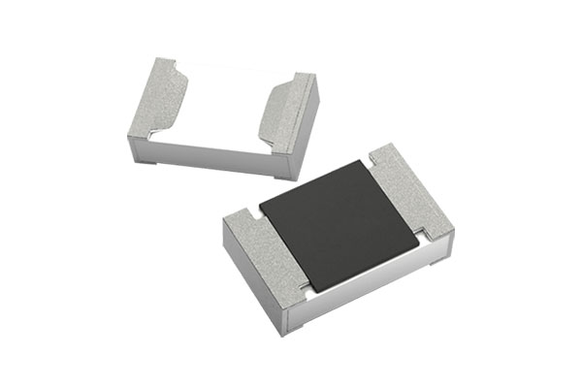

Enhancing Solder Joint Reliability by Soft Termination

Our mission: Zero solder joint cracks

• Soft termination technology for highest solder-joint reliability
• Resistance values from 1 mΩ to 10 MΩ
• High precision by tolerance as low as 0.05% and TCR as low as 10 ppm/K
• High temperature up to 175°C
• AEC-Q200, RoHS, and REACH compliant
• Anti-pulse and anti-sulfur types available

Panasonic offers a wide range of resistors, designed and tested to be used in a variety of applications. All of Panasonic resistors use soft termination technology. This means that by using a soft resin, the solder joint experiences less stress in temperature cycles and therefore, ensures minimum risk of solder joint cracks.

EV Charging – recommended series

• High temperature thick film chip resistors (ERJH series)
• Anti-surge thick film chip resistors (ERJP series)
• High power wide terminal thick film chip resistors (ERJB and ERJD series)

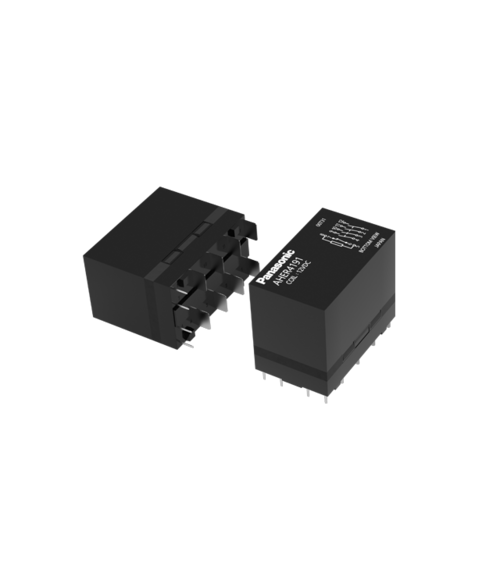

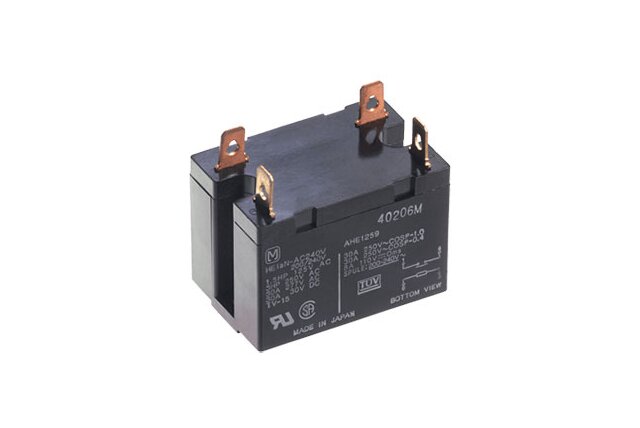

Handle up to 22kW of Charging Power Directly on the PCB

New HE-R relay is the first 3 phase switching solution for direct PCB mounting.

AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the HE line-up are the 35A HE-S with two contacts and 40A HE-R relay with four contacts. Both types are availabe with a mirror contact according to IEC 69947-4-1 and VDE / UL approvals. They can be used in the latest generation of wallboxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm.

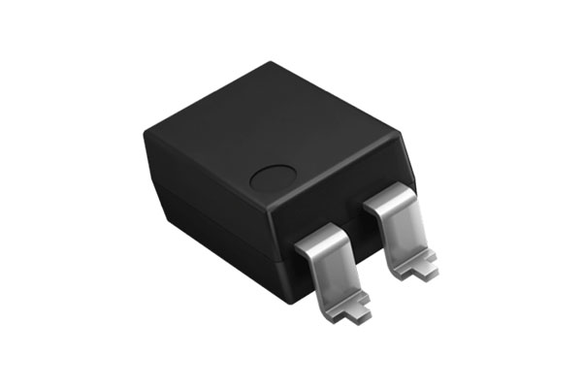

GALVANIC ISOLATED RELAYS FOR COMMUNICATION AND SAFETY MEASURES

Realize an isolation of 1,500V in a small SOP6 housing.

Beside the power line, charging stations include a lot of systems for communication, system control, safety functions and HMI. Wherever switching must be electrically separated from the control circuit, electromechanical - or optocoupled semiconductor PhotoMOS® relays are used. The AQV series, for example, is used in charging stations or battery storage systems to isolate internal from external signals. Our small and reliable AQY series is often used for communication applications. Contact us directly to find the perfect fit for your need quickly – and save hours of internet investigation.

PhotoMOS® relays realize galvanic isolation by an LED that emitts light through an isolator to a solar cell. The solar cell drives the MOSFET output.

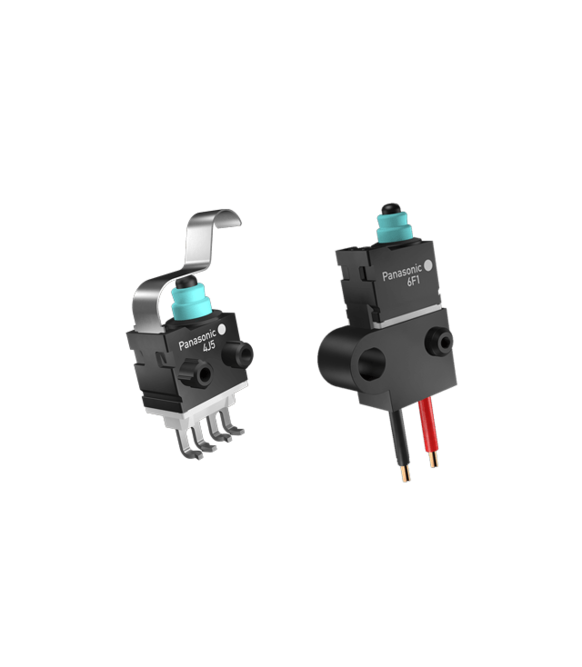

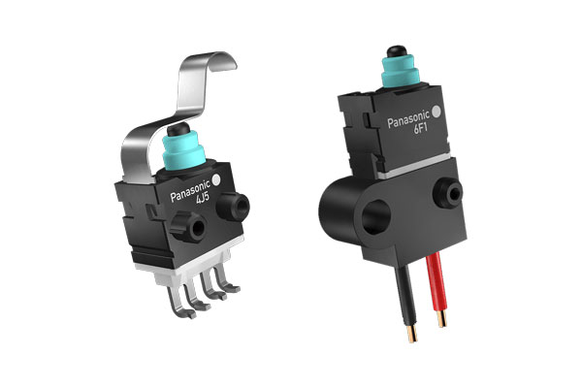

IP67 Slide Switches for Rough Conditions and Limited Space

New ASQMR series integrates resistor-based detection of lead wire break and short circuit.

ASQM series:

• Contact form SPST
• Soldering or fork terminal
• Silent operation with sliding contact
• Long stroke
• Excellent shock and vibration resistance
• Waterproof – IP67 degree of protection
• Insertion lever with high reset force

Additional features ASQMR diagnostic series:

• 2012 chip resistor (0.5W 70°C)
• Smallest diagnostic switch on the market

Safety is an important requirement in EV applications. ASQM switches are used e.g. to detect if a lid or cover plate of the high voltage part is open. The control of the charging station can use this signal to prevent the system of an unintended activation or perform an emergency shutdown for protection against accidential contact. An even higher grade of safety and reliability offers ASQMR series. By integrated chip resistors, failure modes like lead wire break and short circuit can easily be detected.
