ERJD1CFR047U

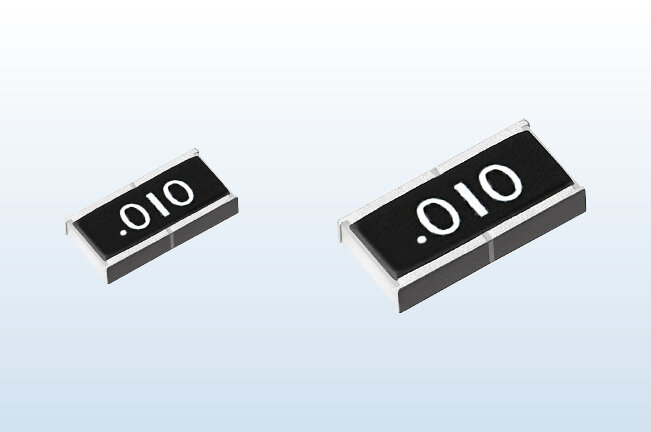

Low TCR High Power Current Sensing Resistors, Wide Terminal Type
Product specifications for this product
| Item | Product specifications |
|---|---|
| Resistance values | 0.047 Ω |
| Resistance tolerance | 1 % |
| Power rating | 2 W |
| Chip size (LxW(EIA)) | 2.5 x 5.0 (EIA:1020) mm |
| Weight (Typ.) | 27 mg |
| Packaging | Embossed Taping |
| T.C.R (×10⁻⁶/K) | ±100 |
