ERJ12RQF1R8U

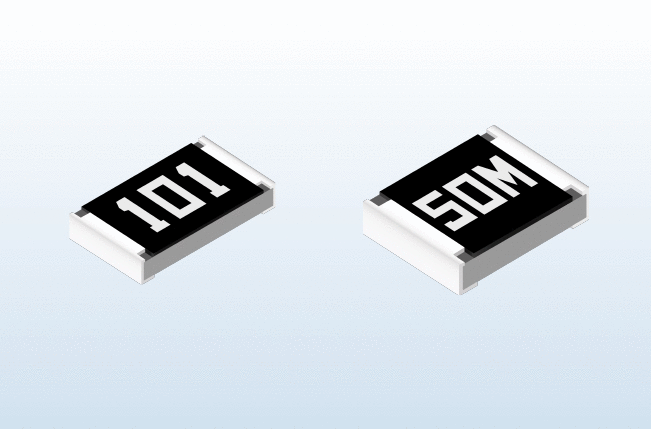

Current Sensing Resistors Thick Film Type
Product specifications for this product
| Item | Product specifications |
|---|---|
| Weight (Typ.) | 27 mg |
| Packaging | Embossed Taping |
| T.C.R (×10⁻⁶/K) | ±100 |
| Power rating | 0.5 W |
| Resistance tolerance | 1 % |
| Resistance values | 1.8 Ω |
| Chip size (LxW(EIA)) | 4.5 x 3.2 (EIA:1812) mm |
