ERZV05D241

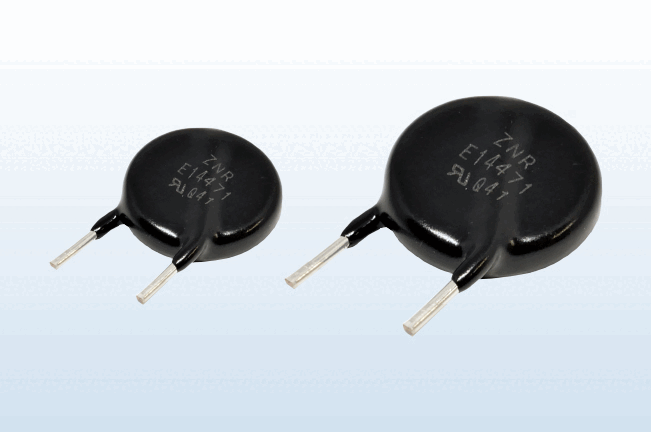

Varistor Type: D Series: V
Product specifications for this product
| Item | Product specifications |
|---|---|
| Voltage | 240 V |
| Capacitance (max.) | 100 pF |
| Clamping voltage (max.) | 415 V |
| Voltage range (max.) | 264 V |
| Voltage range (min.) | 216 V |
| Height | 10 mm |
| Weight (Typ.) | 0.4 g |
| Packaging | Bulk |
| Width | 7 mm |
| Lead diameter | 0.6 mm |
| Series | Series V |
| Thickness [SMD: Length] | 4.6 mm |
| Element size | 5 Series |
| Lead type | STRAIGHT LEAD TYPE |
| Max. allowable voltage ACrms | 150 V |
| Max. allowable voltage DC | 200 V |
| Max. energy (2ms) | 7.5 J |
| Max. peak current (8/20 µs) | 800 A |
| Rated power | 0.1 W |
| Lead Spacing L | 1.9 mm |
| Lead Spacing W | 5 mm |
