CR-2U

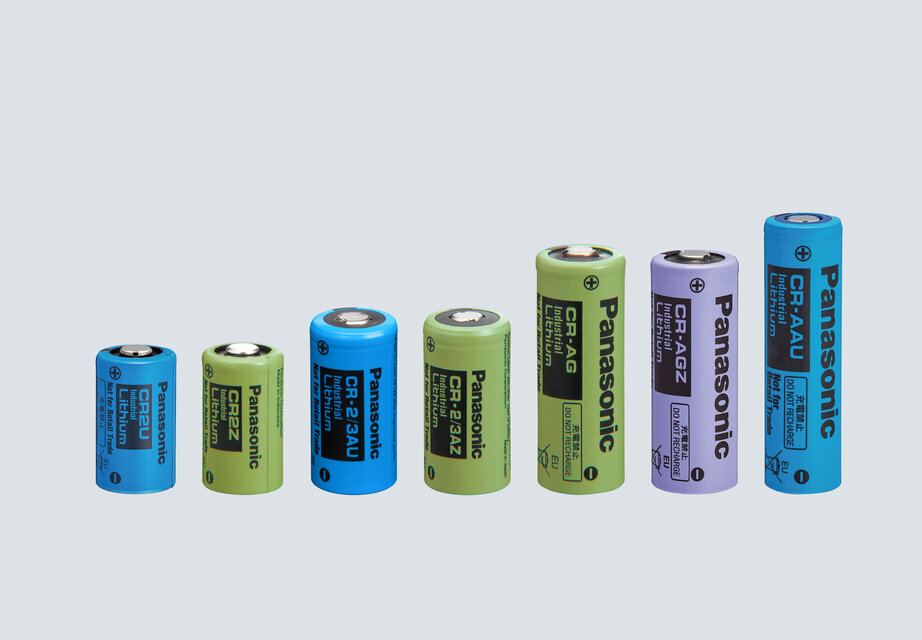

Cylindrical type lithium batteries(CR series/Long life type)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Nominal Voltage | 3 V |
| Nominal Capacity | 1000 mAh |
| Diameter | 15.6 mm |
| Height | 27 mm |
| Weight (approx.) | 11 g |
| Operating temperature range (min.) | -40 °C |
| Operating temperature range (max.) | 85 °C |
| IEC | - |
| JIS | - |
| Continuous Standard Drain | 2.5 mA |
| Type | CR cylindrical(long life type) |
| Maximum Pulse Discharge Current | 2 A |
| IEC 60086-4 | Certified |
| UL 1642 | Certified |
