2R5SVT1500M

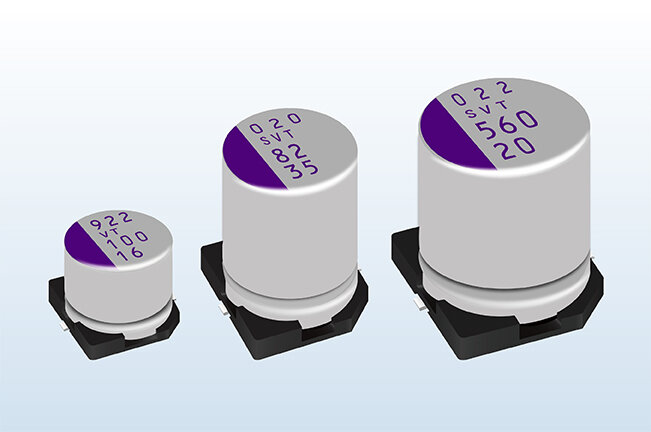

SVT
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 1500 µF |
| Rated voltage | 2.5 V |
| Endurance | 2000 h |
| Size code | E12 |
| Category temperature range (min.) | -55 °C |
| Category temperature range (max.) | 125 °C |
| Body length | 11.9 mm |
| Forming & packaging feature | Embossed carrier taping (reel packing) |
| Leakage current (max.) | 750 µA |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Diameter | 8 mm |
| Weight (Typ.) | 0.86 g |
| Polarity type | Polar |
| Body type | Surface mount type (vertical mount style) |
| Rated ripple current-2 | 1620 mArms |
| Rated ripple current-2(freq.) | 100 kHz |
| AEC-Q200 | - |
| Dissipation factor [max.] | 0.12 |
| Endurance@Temp.-1 | 2000@125°C |
| Endurance@Temp.-2 | - |
| ESR Frequency | 100 kHz |
| Min. packaging quantity | 400 piece |
| Rated ripple current-1 | 5150 mArms |
| Rated ripple current-1 (freq.) | 100 kHz |
| Rated ripple current-1 (temp.) | T≦105 °C |
| Rated ripple current-2 (temp.) | 105＜T≦125 °C |
| Equivalent series resistance | 10 mΩ |
