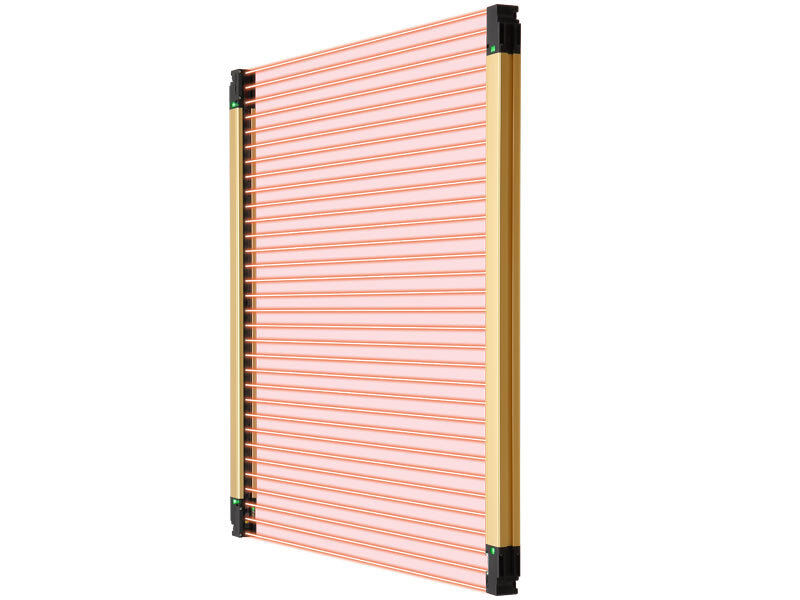

SF4D-F111
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sensor type | Finger protection |
| Sub category | Light Curtian |
| Sensing range | 12 m |
| Output | NPN/PNP |
| Connection method | Connector |
| Emitting element | LED infrared |
| Power supply | 24 V DC |
| Protection | IP 67 |
| Temperature range | -10 to +55°C |
| Material | Aluminium |
| Protective height | 1110mm |
| Safety category | Category 4 |
| OFF response time | 10 ms |
| OFF response time max | 10 |
| ON response time | 50 ms |
| ON response time max | 50 |
| Protective height max | 1110 |
| Sensor category | 14 |
| Smallest detectable object (diameter) | 14 mm |
| Special functions | Muting/ Blanking function |
