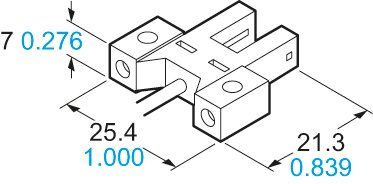

PM-K45-P-C3
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sensor type | Miniature |
| Sub category | U-shaped |
| Sensing range | 6 mm |
| Output | PNP |
| Output operation | Light-ON / Dark-ON |
| Connection method | Cable |
| Response time | 0,02 ms |
| Emitting element | LED infrared |
| Power supply | 5 to 24 V DC |
| Protection | IP 64 |
| Temperature range | –25 to +55 ℃ |
| Material | Plastic |
| Sensor category | Photoelectric |
