4TAE470MIL

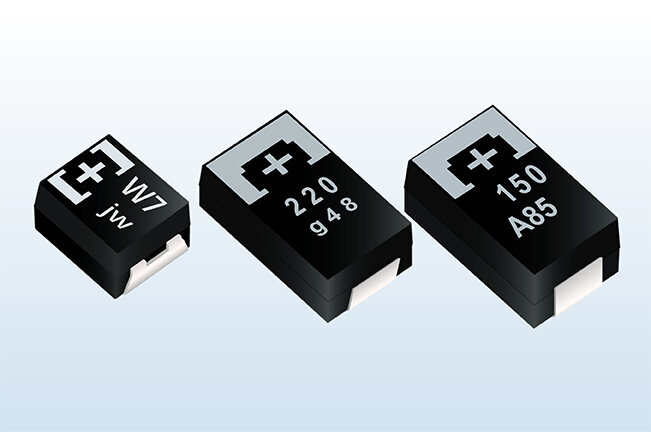

TA
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 470 µF |
| Rated voltage | 4 V |
| Endurance | 2000 h |
| Size code | D3L |
| Equivalent Series Resistance | 18 mΩ |
| Leakage current | 188 µA |
| Height | 2.8 mm |
| Length x Width | 7.3 * 4.3 mm |
| Operating temperature range (max.) | 105 °C |
| Operating temperature range (min.) | -55 °C |
| Permissible ripple current (rms) | 2800 mA |
