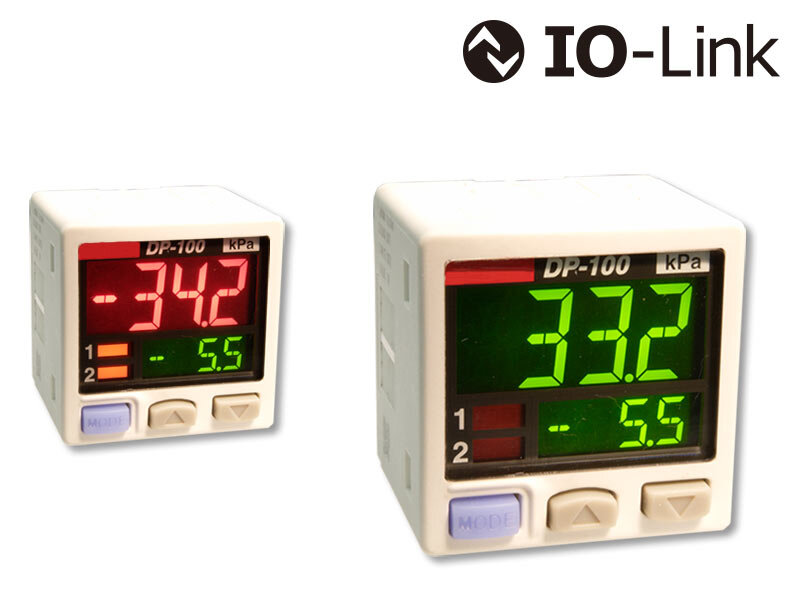

DP-101ZL3-M-P
Product specifications for this product
| Item | Product specifications |
|---|---|
| Sub category | Pressure |
| Output | IO-Link |
| Connection method | Connector |
| Response time | 2.5 ms |
| Power supply | 12 to 24V DC |
| Protection | IP 40 |
| Temperature range | 0 to +50°C |
| Material | Plastic |
| Applicable fluid | Non-corrosive gas |
| Pressure port | M5 female thread |
| Pressure range | -1 to 1 bar |
| Pressure range max | 1 |
| Pressure range min | -1 |
| Type of pressure | Gauge pressure |
| Sensor category | Pressure sensors / DP-100L series |
