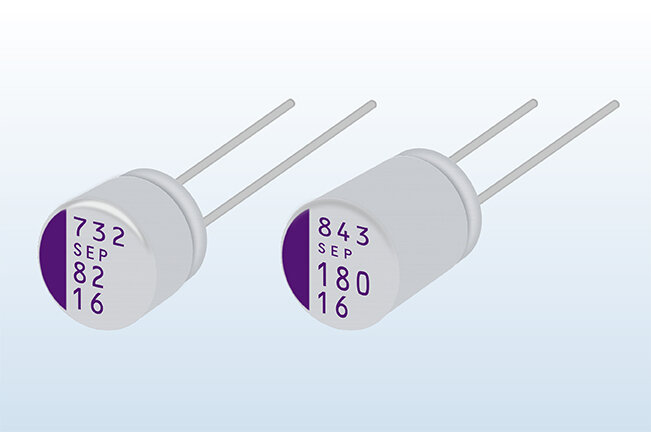

6SEP150M+TSS
SEP
Product specifications for this product
| Item | Product specifications |
|---|---|
| Capacitance | 150 µF |
| Rated voltage | 6.3 V |
| Endurance | 3000 h |
| Size code | E7 |
| Category temperature range (min.) | -55 °C |
| Category temperature range (max.) | 105 °C |
| Body length | 7 mm |
| Forming & packaging feature | Lead terminal taping (ammo packing) |
| Leakage current (max.) | 472 µA |
| Tolerance on capacitance (max.) | 20 % |
| Tolerance on capacitance (min.) | -20 % |
| Diameter | 8 mm |
| Weight (Typ.) | 0.53 g |
| Lead (terminal) pitch | 3.5 mm |
| Polarity type | Polar |
| Body type | Radial lead type |
| AEC-Q200 | - |
| Dissipation factor [max.] | 0.12 |
| Endurance@Temp.-1 | 3000@105°C |
| Endurance@Temp.-2 | - |
| ESR Frequency | 100 kHz |
| Number of terminals | 2 |
| Min. packaging quantity | 1000 piece |
| Rated ripple current-1 | 2560 mArms |
| Rated ripple current-1 (freq.) | 100 kHz |
| Rated ripple current-1 (temp.) | 105 °C |
| Rated ripple current-2 (temp.) | - |
| Equivalent series resistance | 35 mΩ |
