ERJPC High Precision Thick Film Chip Resistor (Super High Precision Type)

Demand for high precision and low TCR is growing across automotive, industrial equipment, and data server applications. The ERJPC High Precision Thick Film Chip Resistor series achieves high precision comparable to conventional thin-film resistors in a thick-film chip resistor construction. It solves environmental resistance and power performance challenges all at once.

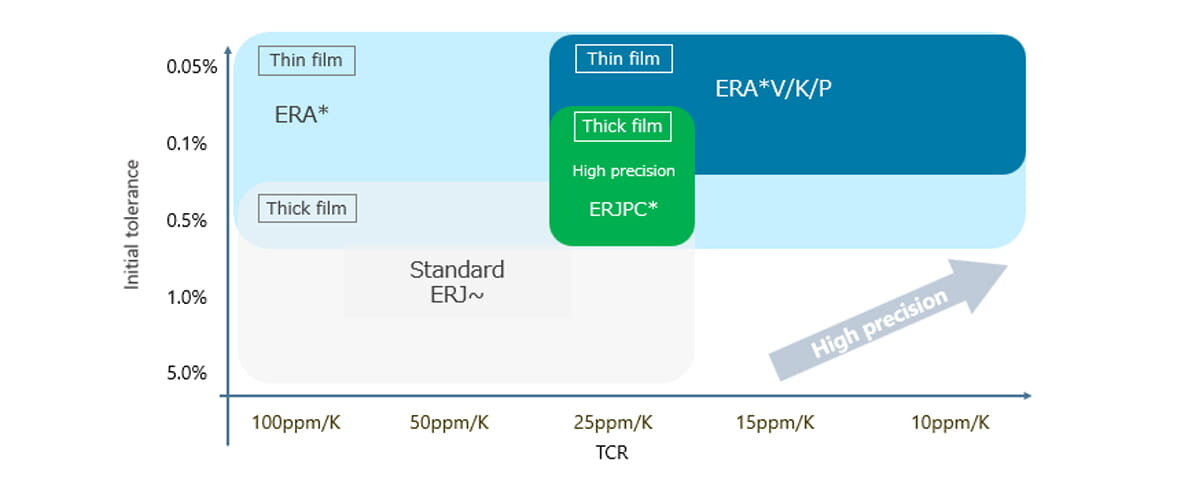

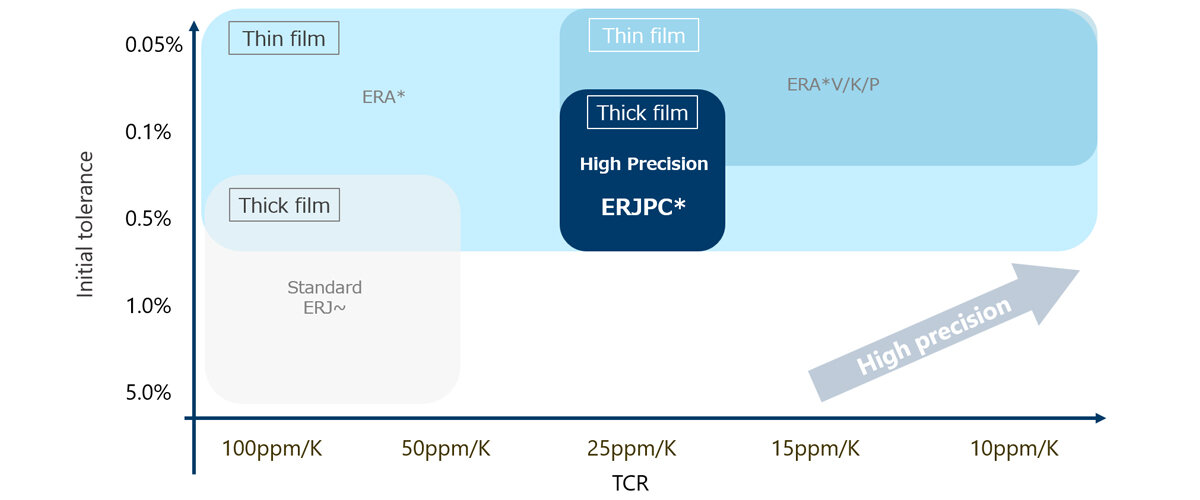

The ERJPC High Precision Thick Film Chip Resistor achieves resistance tolerance (±0.1%) and temperature coefficient of resistance (±25 ppm/K) equivalent to thin-film resistors, while maintaining thick-film construction through proprietary materials and process design.

High Precision:

• Resistance Tolerance: ±0.1%, TCR: ±25 ppm/K
• Provides precision performance that exceeds conventional thick-film resistors

High Reliability:

• Achieves industry-leading* resistance stability for thick-film resistors (resistance change rate ±0.2% or less in various reliability tests)
• Offers superior environmental resistance, including protection against ESD and contamination—common weaknesses in thin-film resistors

*According to our research as of November 2025

High Power Rating:

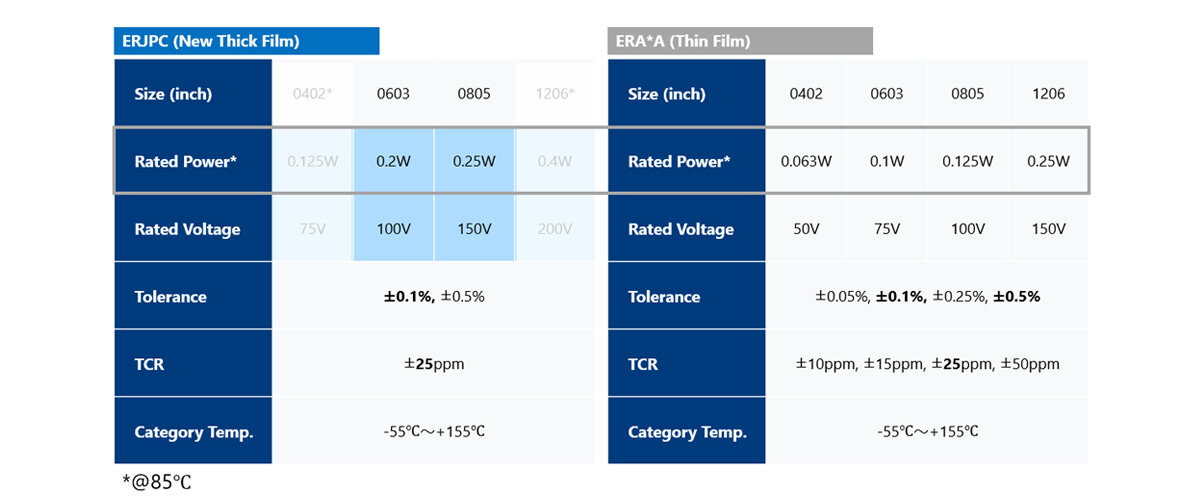

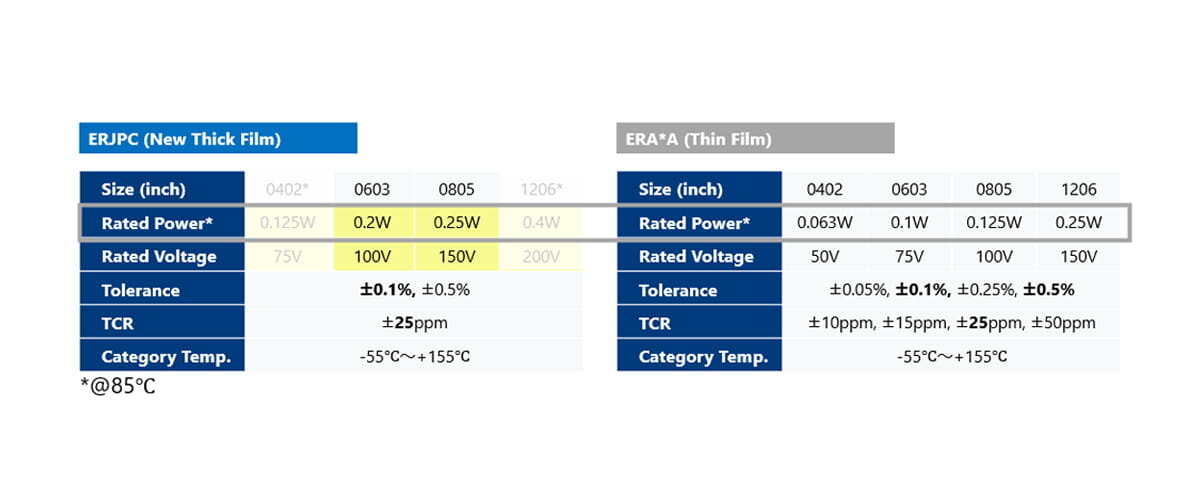

• Achieves higher rated power compared to conventional thin-film products (e.g., 0603 size: 0.1W →0.2W)

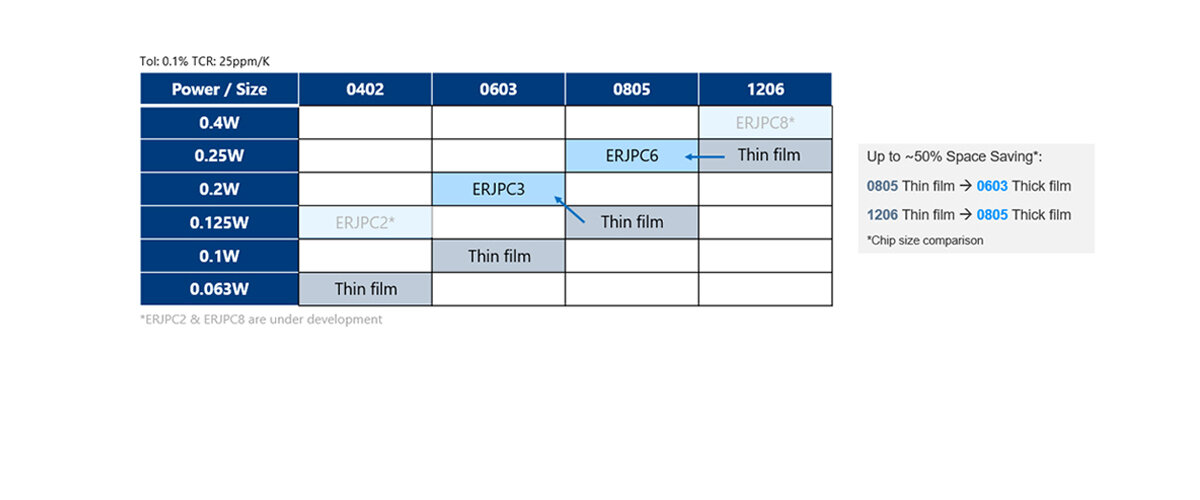

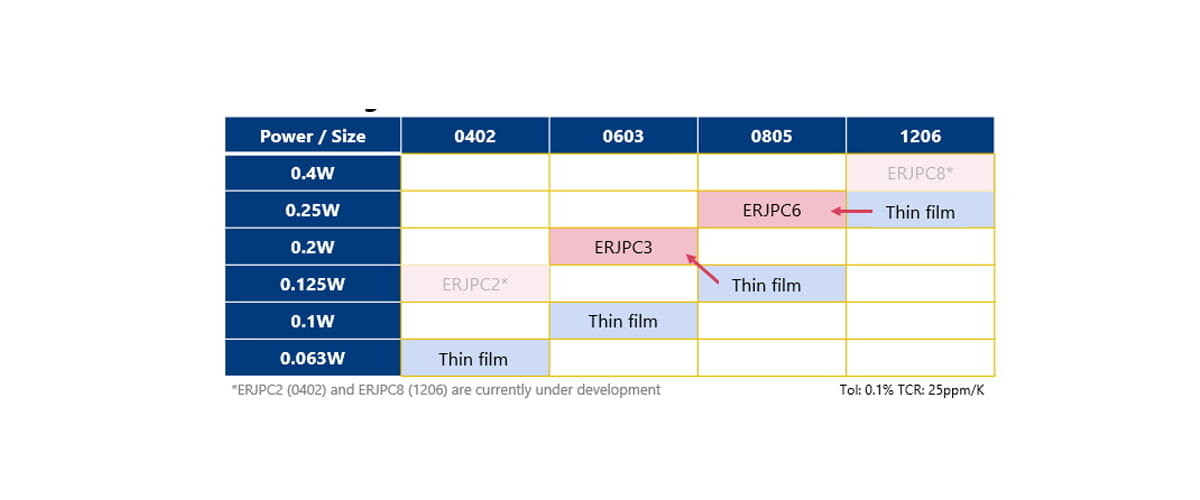

Compared with thin film resistors of the same size, the new ERJPC High Precision Thick Film Chip Resistor (ERJPC) provide higher power capability, allowing the same power rating to be achieved in a smaller case size. ERJPC series enables up to 50% PCB space saving, supporting overall board miniaturization.


Versatile for a wide range of designs—not limited to specific applications.

Recommended Circuits

• Op-amp amplifier circuits
• Voltage divider circuits
• Voltage/current sensing circuits

Recommended Applications

• Automotive
  • BMS
  • Inverter
  • Lighting
• ICT
• Industrial
  • Precision processing machines
  • Industrial robots
  • Measurement machines
  • Power supply

Reference Standards

• RoHS directive compliant
• IEC 60115-8

Question: How does ERJPC fit into Panasonic precision resistor portfolio?
Answer: ERJPC expands Panasonic high-precision resistors lineup by introducing a thick film solution that  provides thin film class initial tolerance levels for many applications, while also enabling higher power capability and robust environmental performance. It complements Panasonic thin film precision portfolio, giving designers an additional option when applications require high precision together with enhanced power density and compact system design.

Question:What precision levels and case sizes are available?

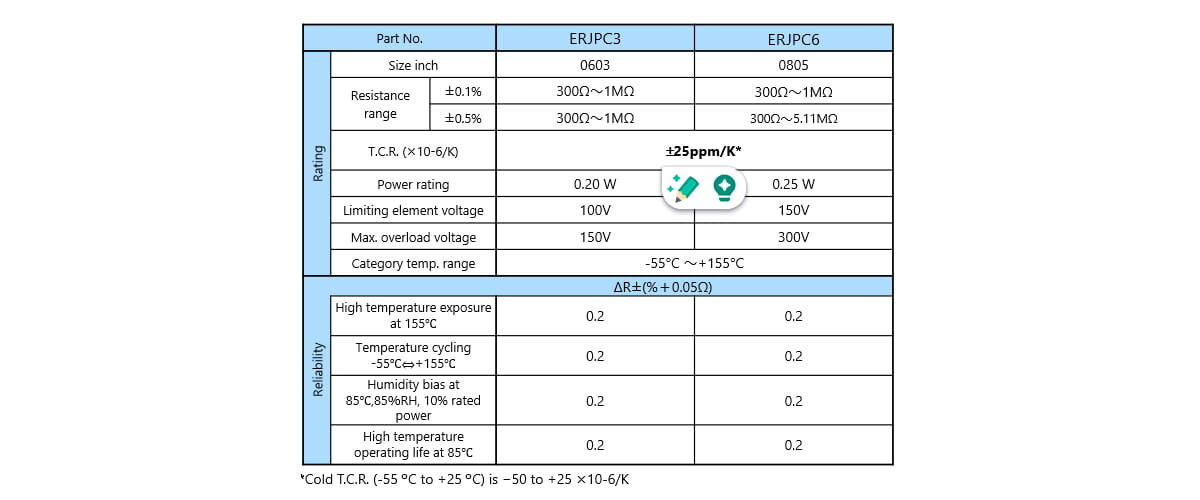

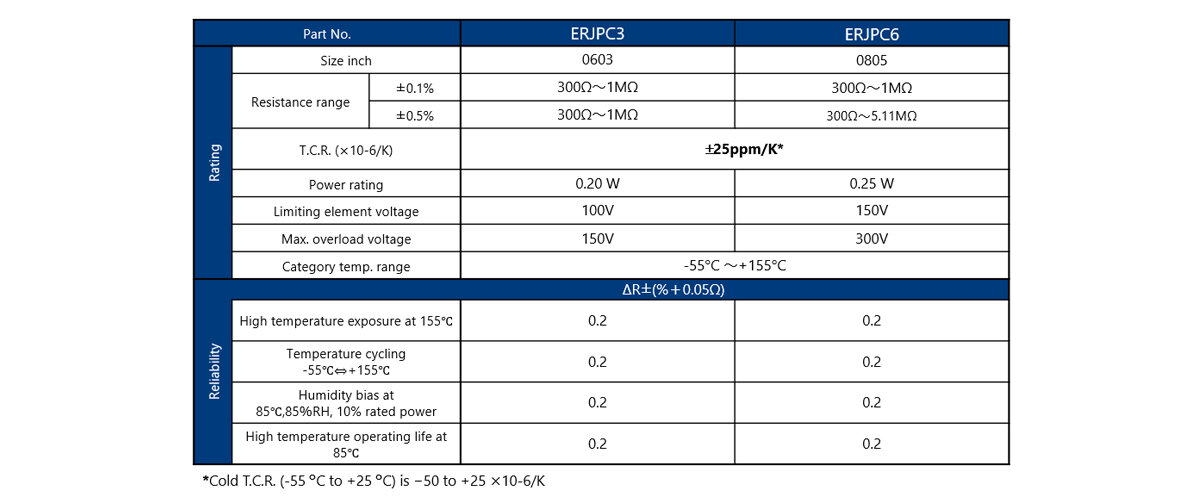

Answer: ERJPC series offers tolerances of ±0.1% and ±0.5% and TCR as low as ±25 ppm/K. ERJPC is currently available in 0603 and 0805 case sizes, supporting high-density designs that require precision performance in compact formats. Additional sizes such as 0402 and 1206 are currently under development.

Question:Is ERJPC suitable for automotive applications?
Answer: Yes. ERJPC is AEC‑Q200 compliant and designed to meet the environmental and reliability requirements of automotive applications.
