New HE-S SC power relay
New HE-S SC: Compact relay solution for future-ready single-phase EV charging systems

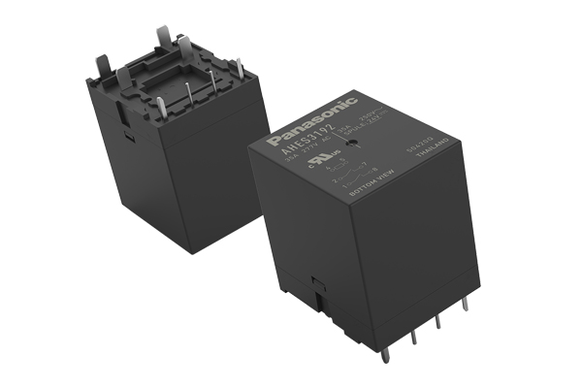

The new HE-S PCB relay series (2a and 2a1b) from Panasonic Industry is designed for single-phase EV charging systems and wallbox applications. It already complies with the upcoming IEC 62955 short-circuit requirement, which becomes mandatory in Q4 2028.
The relay supports up to 40 A per contact at ambient temperatures up to +70°C and provide high short-circuit capability (Ip = 1.85 kA, I²t = 4.5 kA²s). Its compact design allows direct PCB integration, reducing system size and overall cost.
The optional 2a1b version includes an additional mirror contact for status monitoring, supporting safety and diagnostic functions. A low coil holding power of 400 mW contributes to energy-efficient system design.

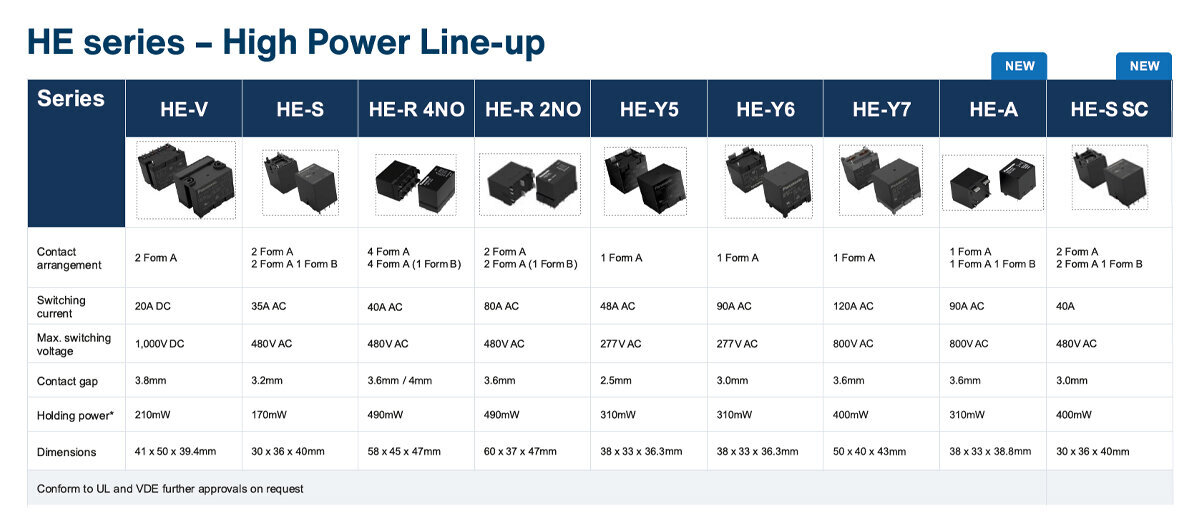

New HE-S SC. The latest sibling of Panasonic’s HE relay family
Key Features
- Designed for single-phase EV charging systems and wallbox applications
- Fully compliant with upcoming IEC 62955 short-circuit requirements (mandatory from Q4 2028)
- High switching capability: up to 40 A per contact at up to +70°C
- Strong short-circuit performance: Ip = 1.85 kA, I²t = 4.5 kA²s
- Compact PCB design enables direct integration, reducing system size and cost
- Low coil holding power (400 mW) supports energy-efficient operation
- Optional mirror contact (2a1b) enables status monitoring - i.e. functional safety integration
Downloads
Data sheet
| Name | Size | Date | Language |
|---|---|---|---|
| Data sheet HE-S power relays SC type | 693 KB | 01.07.2026 | English |
