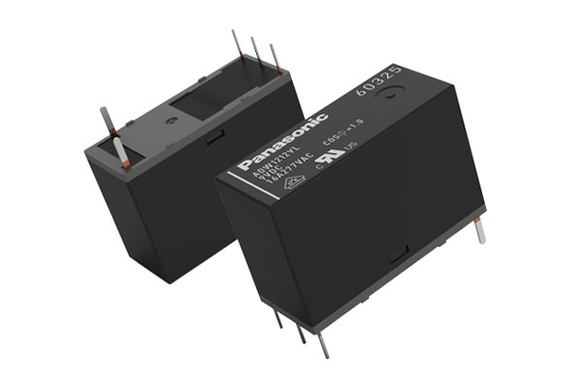

DW-YL relay: high inrush type

Handling 320A inrush current within a small footprint component.

Handling 320A inrush current within a small footprint component

The DW series is an up-to-20A latching relay that offers a wide range of ratings and standards. It can handle up
to 320A for 1.2ms, making it ideal for capacitive loads and scenarios with high inrush currents. This provides
our customers with great flexibility in a variety of applications. Additionally, the relay features a low height of
just 15.8mm and a small PCB footprint, enabling a compact design.

Key Features

  • Small area on PCB - 10mm width
  • Sensitive coil, low power consumption
  • TV8 rating
  • High Inrush capability up to 320A
  • Low profile type (height = 15.8mm)
  • UL/C-UL, VDE certified

Applications

Lighting applications

Lighting applications

• Electric ballast
• Smart lighting
• LED drivers
IoT

IoT

• Smart plug
• Smart switch
PDU

PDU

• Power distribution unit
• Multi outlet power strip

Downloads

expand / collapse
Data sheet
Name Size Date Language
PDF Data sheet: Polarized Power Relays. High Inrush Type DW-YL (Power Relays (Over 2A)) 2 MB 11.09.2024 English
Flyer
Name Size Date Language
PDF Fighting card: Polarized Power Relays. High Inrush Type DW-YL 779 KB 12.06.2024 English
