Automotive-qualified PhotoMOS®

Automotive grade PhotoMOS® relays provide enhanced quality controls.

PhotoMOS® relays for passenger safety

The car chassis must be reliably galvanically-isolated from the HV battery. Automotive PhotoMOS® relays can be used as fast electronic switches in order to detect leakage currents in a isolation-monitoring application.

Key Features

Available for high voltages up to 1500V
Minimal leakage current (typ. <1nA)
Turn-on time: max. 0.5ms -1.0ms
Turn-off time: max. 0.5ms
Tested according to AEC-Q101
Input/output isolation ≤5kVrms
No threshold voltage
Stable On-resistance over entire lifetime
Highly resistant to shock and vibration

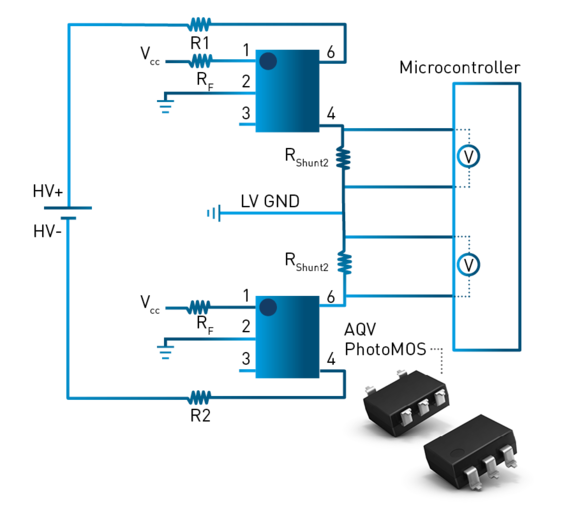

Isolation monitoring

PhotoMOS® technology is used to check the isolation between high voltage (HV) and low voltage (LV) in hybrid and electronic vehicles (HEV/EV). In connection with high-ohmic resistors (shunts), the secure separation of the high voltage and low voltage sides of the electrical system can be checked.

Automotive

Isolation monitoring
Battery monitoring
Signal processing

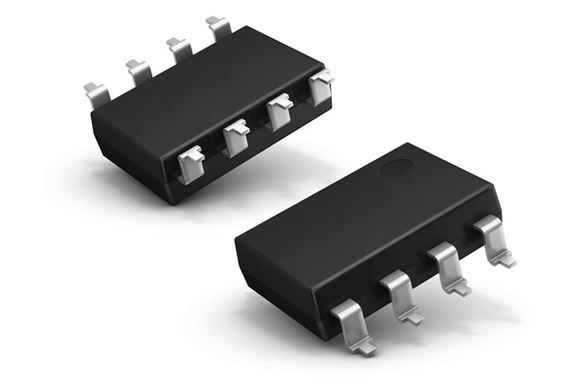

AQW series

AQW216HAXooo

Output rating 600V / 40mA
Contact configuration 2FormA
DIP8 SMD

Other versions available on request

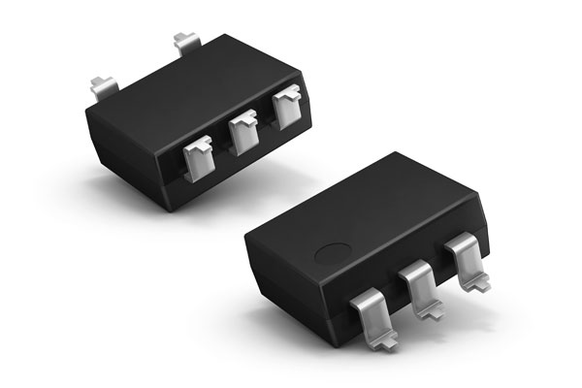

AQV series

AQV219HAXooo

Output rating 900V / 15mA
Contact configuration 1FormA
DIP6 SMD housing, 5 pin version

AQV258HAXooo

Output rating 1500V / 20mA
Contact configuration 1FormA
DIP6 SMD housing, 5 pin version

Other versions available on request
