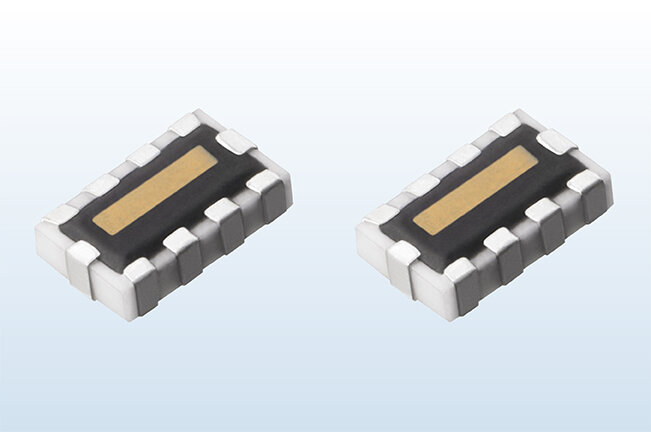

EZAEGCA50AV

ESD Suppressor Array

Product specifications for this product

Item Product specifications
Rated voltage 15 V
Capacitance 0.25 +0.05/-0.10 pF
Clamping voltage (max.) 100 V
Peak voltage [max.] 500 V
Number of circuit 4
Peak voltage [typ.] 350 V
Weight (Typ.) 4 mg
Packaging Punched Carrier Taping, 4 mm Pitch
Category temperature range -55 to +125 °C
ESD withstanding [IEC61000-4-2 contact Discharge] 8 kV
Chip size (LxW(EIA)) 2.0×1.25 (EIA:0805) mm
