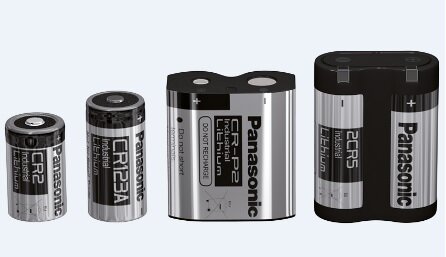

CR-123A
Cylindrical type lithium batteries (CR series/Standard type)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Nominal Voltage | 3 V |
| Nominal Capacity | 1550 mAh |
| Diameter | 17 mm |
| Height | 34.5 mm |
| Weight (approx.) | 16 g |
| Operating temperature range (min.) | -40 °C |
| Operating temperature range (max.) | 70 °C |
| IEC | CR17345 |
| JIS | CR123A,CR17345 |
| Continuous Standard Drain | 20 mA |
| Type | CR cylindrical(standard type) |
| IEC 60086-4 | Certified |
| UL 1642 | Certified |
