CR-2025

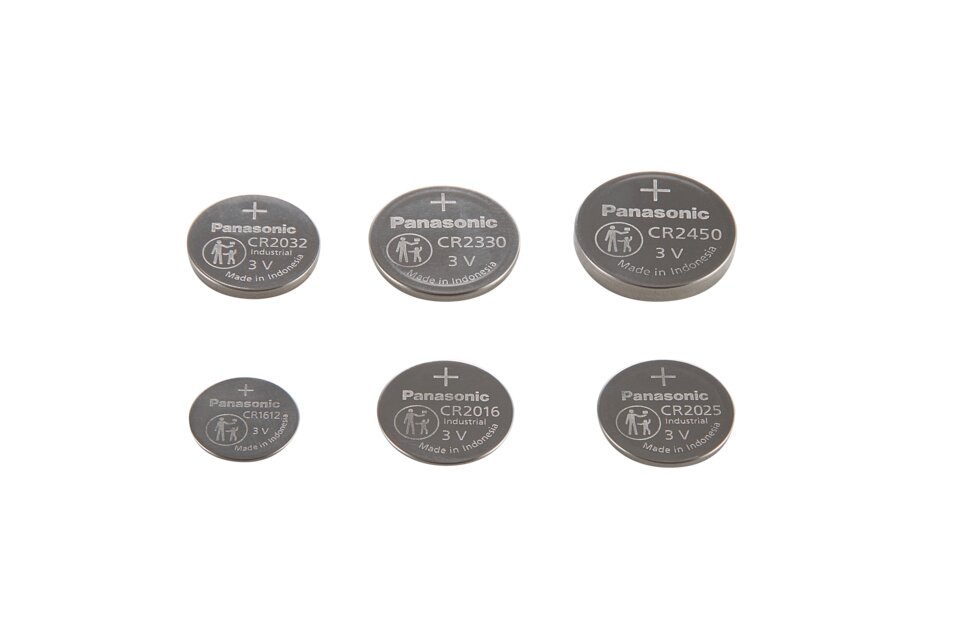

Coin type lithium batteries (CR series)
Product specifications for this product
| Item | Product specifications |
|---|---|
| Nominal Voltage | 3 V |
| Nominal Capacity | 165 mAh |
| Diameter | 20 mm |
| Height | 2.5 mm |
| Weight (approx.) | 2.3 g |
| Operating temperature range (min.) | -30 °C |
| Operating temperature range (max.) | 85 °C |
| IEC | CR2025 |
| JIS | CR2025 |
| Continuous Standard Drain | 0.2 mA |
| Type | CR coin |
| IEC 60086-4 | Certified |
| UL 1642 | Certified |
