Precise edge measurement with HG-T laser sensor

Panasonic introduces a new way how to use HG-T laser thru-beam sensors, which are designed to provide fast and reliable measurements in a variety of applications. These sensors feature an ultra-thin design and high accuracy, making them ideal for edge guarding and diameter or thickness measurement in harsh industrial environments.

Key features of HG-T sensors:

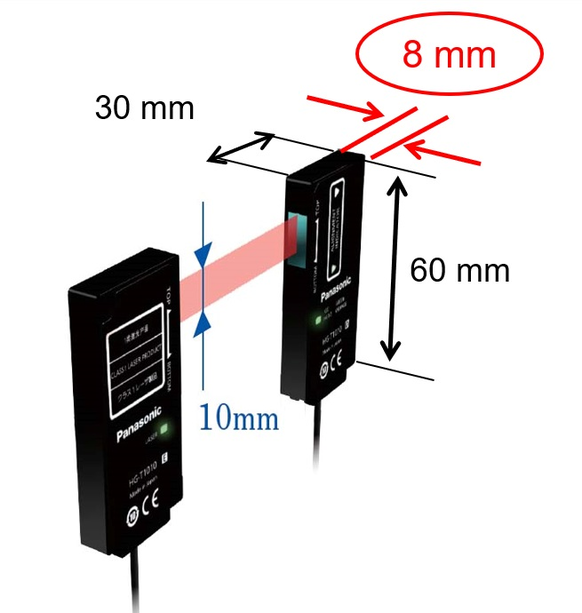

• Ultra-thin design: the sensor head is only 8 mm thick, allowing easy integration into tight spaces, such as the interiors of various machines.
• The sensor measures with a 10 mm wide laser beam, which is ideal for precise dimensional and position control.
• Versatile measuring range.
• Repeatability down to 1 μm: Thanks to their high repeatability, the sensors always provide reliable and accurate results.
• Flexible sampling.
• Smart Connection: Automatic recognition of transmitter and receiver cables ensures easy setup and quick installation.
• Rugged construction: the IP67-rated aluminum housing is designed to withstand harsh industrial conditions, ensuring long device life.

Panasonic's HG-T sensors are the ideal solution for anyone looking for reliable and accurate measurements in a compact design.
