Electrolytic Capacitors: Reliable performance with evolving low ESR demands
Introduction
Electrolytic capacitors continue to be a dependable choice for engineers thanks to their high ripple current handling, long-term reliability, and cost-efficient design. As power electronics advance-particularly within automotive, industrial, and high efficiency power conversion systems-the industry’s focus has shifted toward capacitors with ultra low ESR (Equivalent Series Resistance). Lower ESR is essential for maximizing efficiency, improving thermal stability, and ensuring reliable performance in demanding, high frequency applications.
What Is ESR and why is it important in Electrolytic Capacitors?

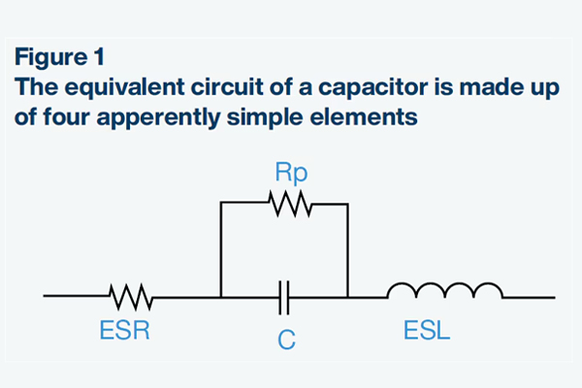

Equivalent Series Resistance (ESR) refers to the resistive component inside a capacitor’s equivalent circuit. ESR directly affects the performance, efficiency, and thermal behavior of power‑electronics systems. Key factors influenced by ESR include:
- Power efficiency: High ESR increases power losses and internal heat, reducing overall system efficiency.
- Ripple voltage: Low ESR helps deliver clean, stable voltage—essential for microprocessors and sensitive digital circuitry.
- System reliability: Lower ESR minimizes internal heating, supports longer capacitor life, and improves control‑loop stability in demanding applications.
Benefits of low ESR Electrolytic Capacitors
Choosing capacitors with low ESR delivers significant performance advantages:
- Lower ripple voltage, ensuring stable and reliable power supply for high‑speed electronics.
- Higher energy efficiency, supporting global energy‑saving standards such as ENERGY STAR and the EU Code of Conduct for power supplies.
- Longer operational lifetime thanks to reduced self‑heating and improved thermal management.
These benefits make low‑ESR capacitors ideal for automotive electronics, industrial power supplies, renewable‑energy systems, and high‑efficiency converters.
Panasonic’s low ESR Electrolytic Capacitor solutions
Panasonic offers one of the broadest selections of low‑ESR aluminum electrolytic capacitors in the industry. Their portfolio includes:

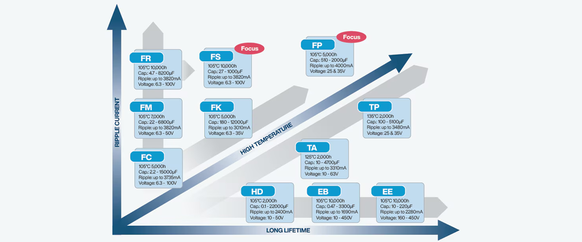

- THT (Through‑Hole) electrolytic capacitors for high‑reliability and high‑ripple applications.
- SMD (Surface‑Mount) capacitors designed for compact layouts and automated production environments.
With advanced materials engineering and decades of manufacturing expertise, Panasonic capacitors deliver consistent low ESR, high ripple‑current capability, and exceptional long‑term reliability—making them a trusted choice for modern power‑electronics design.

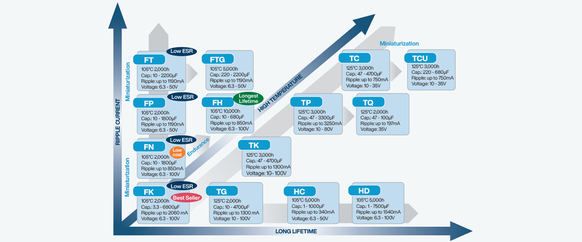

SMD Series Highlights

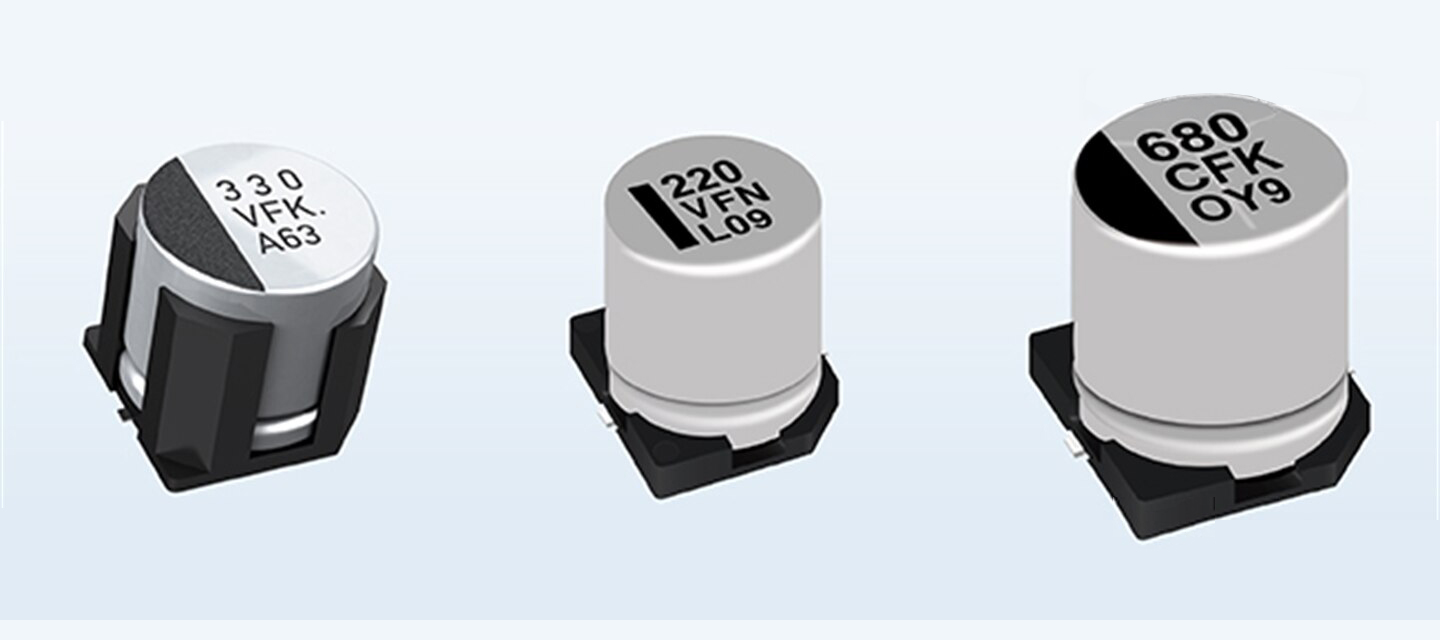

- · FK Series: Broad offering for miniaturized designs, low ESR ideal for high-efficiency systems.
- · FT Series/ FP Series: ESR values down to 60 mΩ in compact packages.
- · TCU Series: Automotive-grade, AEC-Q200 qualified, vibration-proof options available.
Automotive and Industrial Applications of Electrolytic Capacitors
Automotive ECUs
Electrolytic capacitors are essential components in modern Electronic Control Units (ECUs). Their high ripple‑current capability and durability make them ideal for DC/DC converter smoothing, voltage stabilization, and power distribution in demanding automotive environments.
Industrial Power Supplies
In industrial equipment, electrolytic capacitors provide stable and reliable filtering performance, even under harsh conditions such as extreme temperatures, electrical noise, and mechanical stress. This ensures consistent operation of industrial power supplies and control systems.
Driverless and ADAS Systems
Advances driver-assistance systems and autonomous driving technologies rely on capacitors that can withstand high temeperatures, continuous vibration, and long operational lifespans. Roboust electrolytic capacitor designs support safety-critical electronics where long-term reliablity is essential.
Why Choose Panasonic Electrolytic Capacitors?
- Comprehensive Product Portfolio: Panasonic offers an extensive range of electrolytic capacitors tailored to automotive, industrial, and high‑reliability applications.
- Field‑Proven Reliability: Every component is engineered to deliver consistent, long‑term performance under real‑world operating conditions.
- Compliance With Global Standards: Panasonic capacitors meet AEC‑Q200 automotive requirements and align with international efficiency and quality standards, ensuring compatibility and safety across diverse applications.
