Progammiersoftware Control FPWIN Pro

Mit der innovativen Programmiersoftware Control FPWIN Pro wird das Maximum bei minimalem Aufwand aus den SPS herausgeholt.

Progammiersoftware Control FPWIN Pro

Control FPWIN Pro ist eine von Panasonic entwickelte Programmiersoftware (für Windows 10 und 11), die der weltweiten Norm IEC 61131-3 entspricht. In zahlreichen Bibliotheken finden Sie fertige Funktionen und Funktionsbausteine, mit denen Sie einen Großteil unseres Know-how für Ihre Programme nutzen und so bei Programmierung und Fehlersuche viel Zeit sparen können.

Leistungsmerkmale

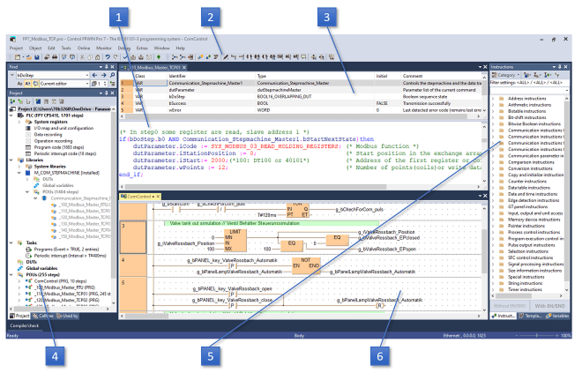

PLC Software Control FPWIN Pro features
  1. Programmiersprache strukturierter Text (ST)
  2. Die Symbolleiste enthält Symbole, die häufig verwendete Menüs darstellen
  3. Variablendeklaration
  4. Eine übersichtliche Navigatorstruktur schafft eine schnelle Orientierung
  5. Funktionen / Funktionsbausteine wählen
  6. Programmiereditor für Kontaktplan (KOP)

Die wichtigsten Highlights von FPWIN Pro auf einen Blick

  • Eine Software für alle Panasonic Steuerungen der FP-Serie
  • 5 verschiedene Programmiersprachen (Anweisungsliste AWL, Funktionsbausteinsprache FBS, Kontaktplan KOP, Ablaufsprache AS, strukturierter Text ST)
  • Eine übersichtliche Navigatorstruktur schafft eine schnelle Orientierung über die Programm-Organisations-Einheiten (POEs), Aufgaben, Systemregister etc., und vereinfacht die Projektverwaltung
  • Kosten- und Zeitersparnis durch Erstellen von wieder verwendbaren Programmmodulen
  • Programmierung, Wartung, Überwachung und Diagnose sind über die Schnittstellen RS232 (COM), Modem, Ethernet und USB möglich
  • Erzwungenes Ein- und Ausschalten von Ein-/Ausgängen über den PC
  • Umfangreiche Kommentarmöglichkeiten - Online Dokumentation bereits bei der Programmerstellung
  • Durch Unicode werden alle Sprachen unterstützt, z.B. in Namen von Variablen, Funktionen, Funktionsbausteinen und Kommentaren
  • Verbesserter Programmierkomfort: Einrastfunktion, automatische Platzierung von neu eingefügten Elementen, Beibehalten der Verbindungen beim Bewegen von Elementen
  • Tastatur-Steuerung ermöglicht eine beschleunigte Progammierung
  • In 8 Landessprachen: Englisch, Deutsch, Französisch, Italienisch, Spanisch, Japanisch, Koreanisch und Chinesisch
  • Echtzeituhr der SPS jetzt in der Software einstellbar
  • Alle IEC-Funktionen unterstützen die FP7
  • Neue Kommunikations- und Zeigerfunktionen
  • Neue Familie mit überladenen und datentypsicheren Befehlen für 32-Bit-SPSen (FP7) und 16-Bit-SPSen
  • Speicherkartenbefehle

Control FPWIN Pro bestellen

Produkt Bestellnummer
Lizenz für Control FPWIN Pro V7. Programmiersoftware, Vollversion für alle SPS der FP-Serie (inklusive FP7) FPWINPRO7_LICENSE



Weitere Informationen

Youtube PLC training course
Videoanleitungen

SPS-Videoschulung

SPS-Grundkurs mit einer Übersicht der Programmierung mit der FPWIN Pro 7-Software.
