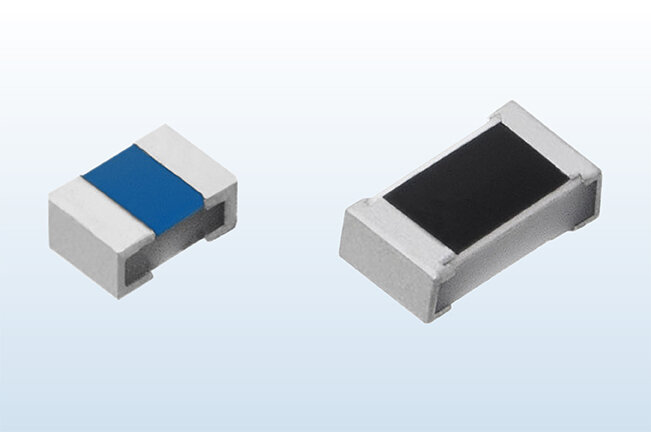

EZAEG1N50AC
ESD Suppressor, 15kV Type
Product specifications for this product
| Item | Product specifications |
|---|---|
| Rated voltage | 30 V |
| Capacitance | 0.04 +0.04/-0.03 pF |
| Clamping voltage (max.) | 100 V |
| Peak voltage [max.] | 500 V |
| Number of circuit | 1 |
| Peak voltage [typ.] | 350 V |
| Weight (Typ.) | 0.12 mg |
| Packaging | Pressed Carrier Taping, 2 mm Pitch |
| Category temperature range | -55 to +125 °C |
| ESD withstanding [IEC61000-4-2 contact Discharge] | 15 kV |
| Chip size (LxW(EIA)) | 0.6×0.3 (EIA:0201) mm |
