EZAEG3A50AV

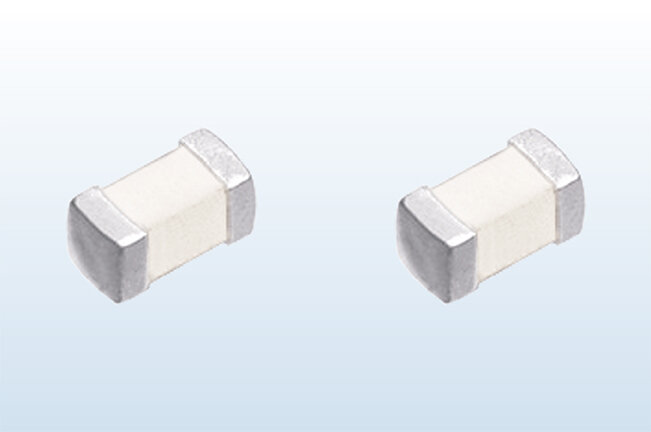

ESD Suppressor
Product specifications for this product
| Item | Product specifications |
|---|---|
| Rated voltage | 30 V |
| Capacitance | 0.10 +0.10/-0.08 pF |
| Clamping voltage (max.) | 100 V |
| Peak voltage [max.] | 500 V |
| Number of circuit | 1 |
| Peak voltage [typ.] | 350 V |
| Weight (Typ.) | 2.2 mg |
| Packaging | Punched Carrier Taping, 4 mm Pitch |
| Category temperature range | -55 to +125 °C |
| ESD withstanding [IEC61000-4-2 contact Discharge] | 8 kV |
| Chip size (LxW(EIA)) | 1.6×0.8 (EIA:0603) mm |
