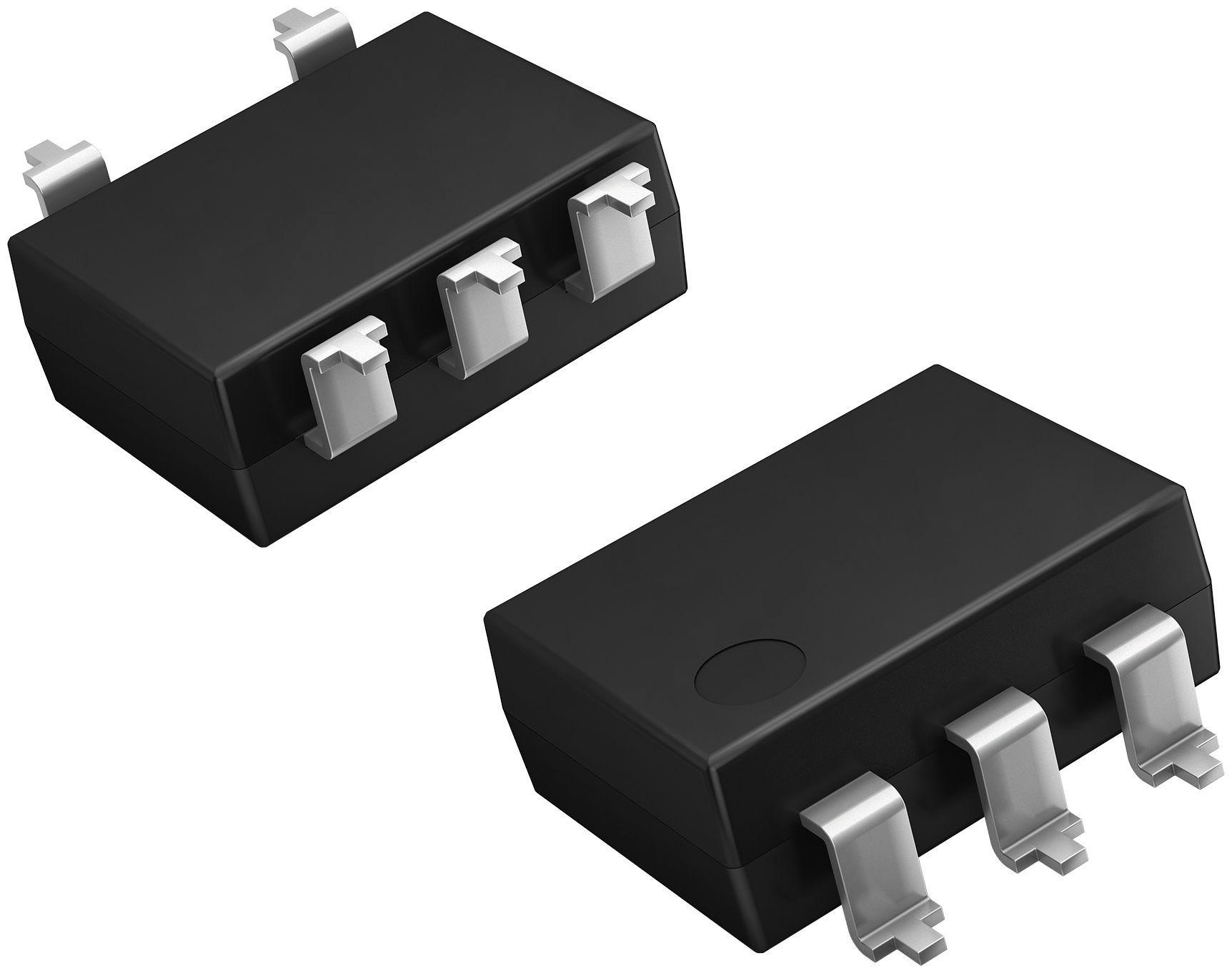

PhotoMOS DIP5_SMD

The new PhotoMOS® HE relay series from Panasonic Industry Europe offers 5kV I/O isolation and an increased clearance and creepage distance on output side, plus miniature 1-Form-A DIP5 packaging, making it particularly suitable as the switching solution for Battery Management Systems (BMS) in storage systems, charging stations, and numerous other high voltage measurement and infrastructure control applications.

Industrial BMS applications demand reliability and consistent performance over the product lifespan”, says Michael Renner, Product Manager at Panasonic Industry Europe. “These new devices extend the load voltage of Panasonic’s PhotoMOS® relay family and improve ruggedness and stability.”

Rated at 1,500V/20mA, new AQV258H5 HE series PhotoMOS® relays have a MOSFET output and enjoy an almost unlimited lifetime if used according to the specifications. On-resistance remains stable throughout the entire lifetime – and AQV258H5 HE series PhotoMOS® relays – unlike electromechanical devices - are unaffected by vibration, a significant benefit in many industrial applications.

New PhotoMOS® series AQV258H5 relays also feature a low control current and low leakage current and produce no switching noise. Devices come with 5 pins to accomodate different creepage and clearance requirements, but a 6 pin version is also available.Both types are offered with through-hole or surface-mount terminations.



Learn more on Panasonic Industry’s PhotoMOS® HE series on our web page.
