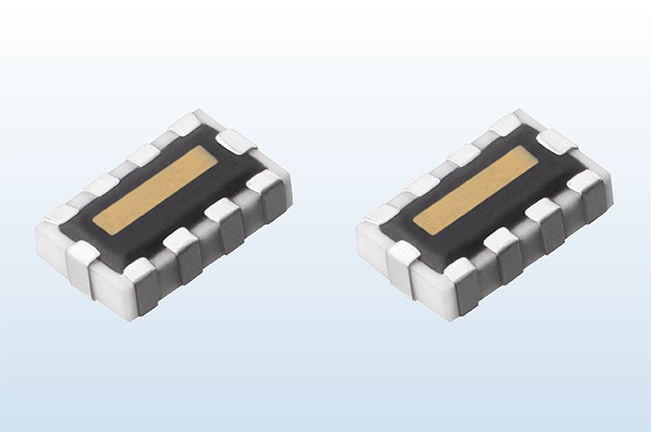

EZAEGCA50AV
ESD Suppressor Array
Product specifications for this product
| Item | Product specifications |
|---|---|
| Rated voltage | 15 V |
| Capacitance | 0.25 +0.05/-0.10 pF |
| Clamping voltage (max.) | 100 V |
| Peak voltage [max.] | 500 V |
| Number of circuit | 4 |
| Chip Size (LxW(EIA)) | 2.0×1.25 (EIA:0805) mm |
| Peak voltage [typ.] | 350 V |
| Weight (Typ.) | 4 mg |
| Packaging | Punched Carrier Taping, 4 mm Pitch |
| Category temperature range | -55 to +125 °C |
| ESD withstanding [IEC61000-4-2 contact Discharge] | 8 kV |
